8 Port PoE Switch
home
Unmanaged PoE+ Switches
8 Port Gigabit PoE Switch
Overview
Specification
Overview

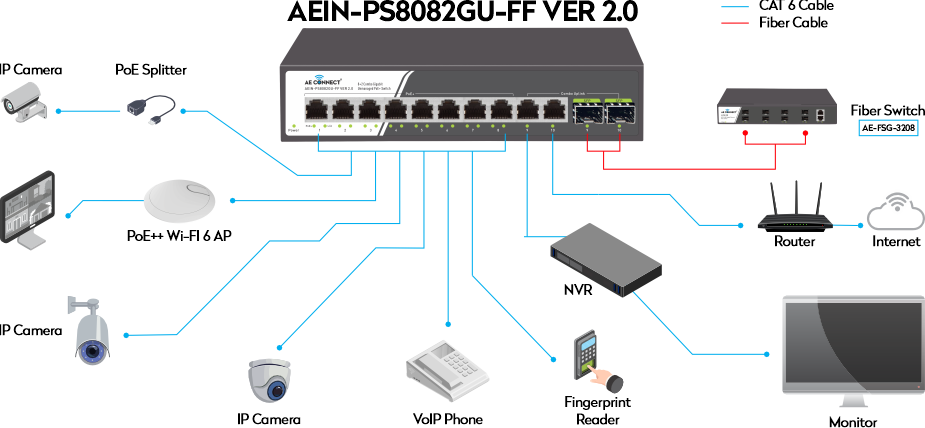

Featuring Aeconnect’s 8 port gigabit PoE switch, using high-quality high-speed network IC and the most stable PoE chip, PoE port meets 802.3af / 802.3at standard, with simple and convenient installation and maintenance methods and rich business features, it helps users to build a safe and reliable high performance network. It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband; it can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools.
Model :
AE-PS8082GU
PoE Standard:
AF/AT PoE standard
Type:
Unmanaged
PoE+ port:
8x10/100 /1000 PoE+ ports
Uplink Copper Port:
2 x10/100/1000 RJ45 uplink ports
Uplink Fiber Port:
N/A
Surge Protection:
6 KV
Total Power Budget:
120 W
Warranty:
3 Years
Product Name
10-Ports 10/100/1000M PoE Switch
Model
AE-PS8082GU
Connector Type
8x10/100/1000M PoE Ports + 2x10/100/1000M Ethernet Uplink Ports
Network Protocols
IEEE802.3
IEEE802.3u
IEEE802.3x
IEEE802.3ab
PoE Parameters
PoE Standard: IEEE802.3af /IEEE802.3at
Max each port: 15.4W ( IEEE 802.3af )
Max each port30W ( IEEE 802.3at
PoE compatibility: IEEE 802.3af/at adaptive
PoE port output: DC48-55V
Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)
Network Media
10BASE-T: Cat 3,4,5 UTP(≤100 meter)
100BASE-T: Cat 5 UTP(≤100 meter)
1000BASE-TX: Cat5 or more UTP (≤100 meter)
Performance Specication
Bandwidth: 20Gbp
MAC Address: 2K
Packet Buffer Memory: 2M
Packet Forwarding Rate: 14.88Mpp
Forwarding Mode: Store-And-Forward
Power Supply
Power input: AC100-240V 50/60Hz, Output: 52V2.3A, Power Budget: 120
PWR Power supply indicator
Lighting: Powered
Un-Light: No Powe
Led indicator
1-10 RJ-45 ACT indicator
Lighting: Connecting
(Green) Flashing: Data Transmit
Un-Light: Disconnect
Working Environment
Operating Temperature: -20℃ ~ 50℃;
Storage Temperature: -40℃ ~ 85℃;
Operating Humidity: Max 90%, non-condensing
Storage Humidity: Max 95%, non-condensing
Working Height: Max to 10,000 feet (3,000 meters)
Storage Height: Max to 10,000 feet (3,000 meters)
Physical Parameter
Product Dimension (LxWxH): 222mm x 163mm x 40mm
Package Dimension (LxWxH): 303mm x 190mm x 60mm
N.W: 0.9KG
G.W: 1.2KG
Package Contents
Ethernet Switch: 1 unit
User Guide: 1 unit
Warranty Card: 1 unit
Power Cord: 1unit
MTBF
100,000 hours
Certication
CE, RoHS, FCC, CCC
Warranty
3 years
