Specification

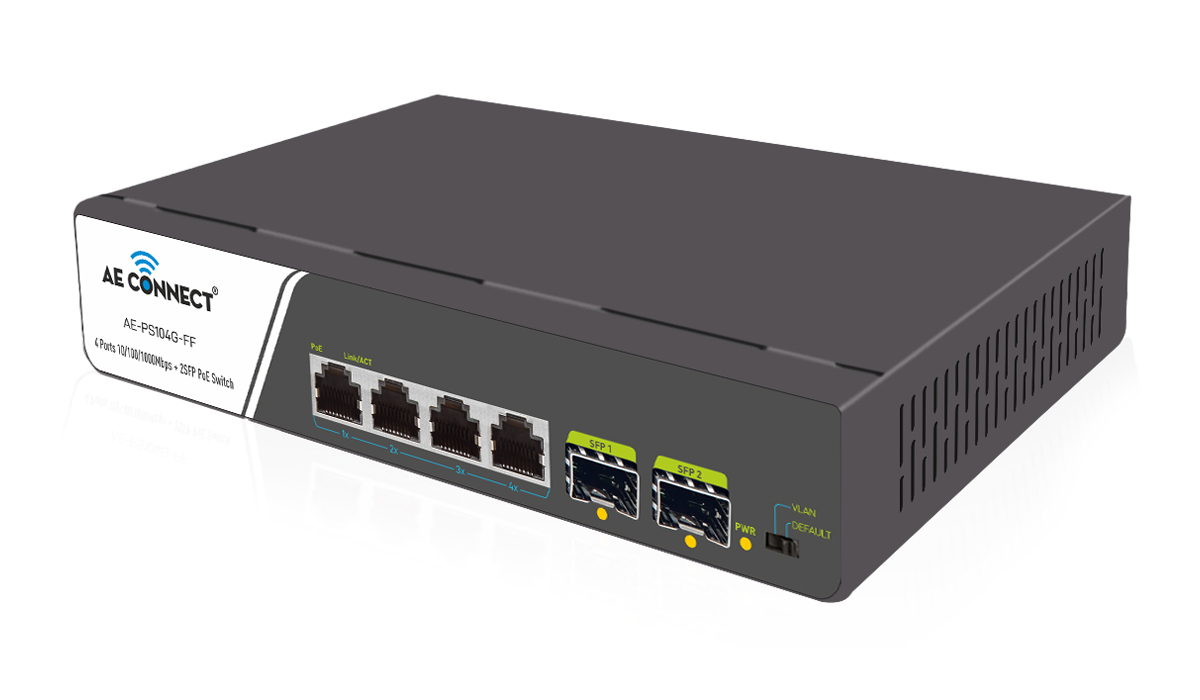

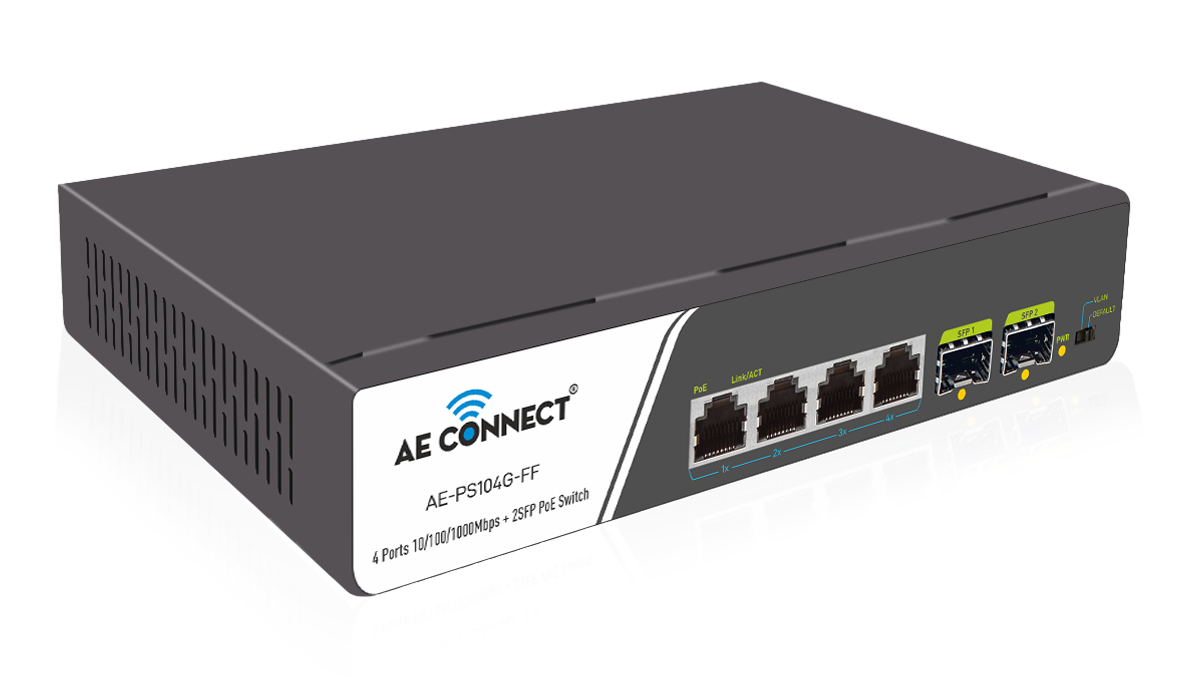

| Product Name | 6-Ports 10/100/1000M PoE+ Switch |
| Model | AE-PS104G-FF |
| Connector Type | 4 Ports 10/100/1000M PoE+ 2 Port 1000M SFP Uplink |
| Network Protocols |
IEEE802.3 IEEE802.3u IEEE802.3ab IEEE802.3x IEEE802.3z |
| PoE Parameters |
PoE+ Standard: IEEE802.3af / IEEE802.3AT Max each port: 15.4W (IEEE 802.3AF) Max each port: 30W (IEEE 802.3AT) PoE+ compatibility: IEEE 802.3AF/AT adaptive PoE+ port output: DC48-55V Power Pin: Power over spare pairs 1/2(+) , 3/6 (-) |
| Network Media |
10BASE-T: Cat3,4,5 UTP (≤100 meter) 100BASE-T: Cat5 UTP (≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) |
| Optical MultiMode Fiber: | 850nm, 1310nm, Transmission Distance: 550m/2Km Single-Mode |
| Fiber: | 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km |
| Performance Specification | Bandwidth: 12Gbps MAC Address: 2K Packet Buffer Memory: 1M Packet Forwarding Rate: 8.928Mpps Forwarding Mode: Store-And-Forward | Working Environment |
Storage Temperature: -40 ~ 85°C Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing Working Height: Max 10,000 feet (3,000 meters) Storage Height: Max 10,000 feet (3,000 meters) |
| Certification | CE, RoHS |
| Warranty | 3 Years |
