AEIN-PS16FE2GC 16 Port PoE Switch with Combo Uplinks

AEIN-PS16FE2GC

16 Port Fast Ethernet Unmanaged PoE+ Switch

DATASHEET

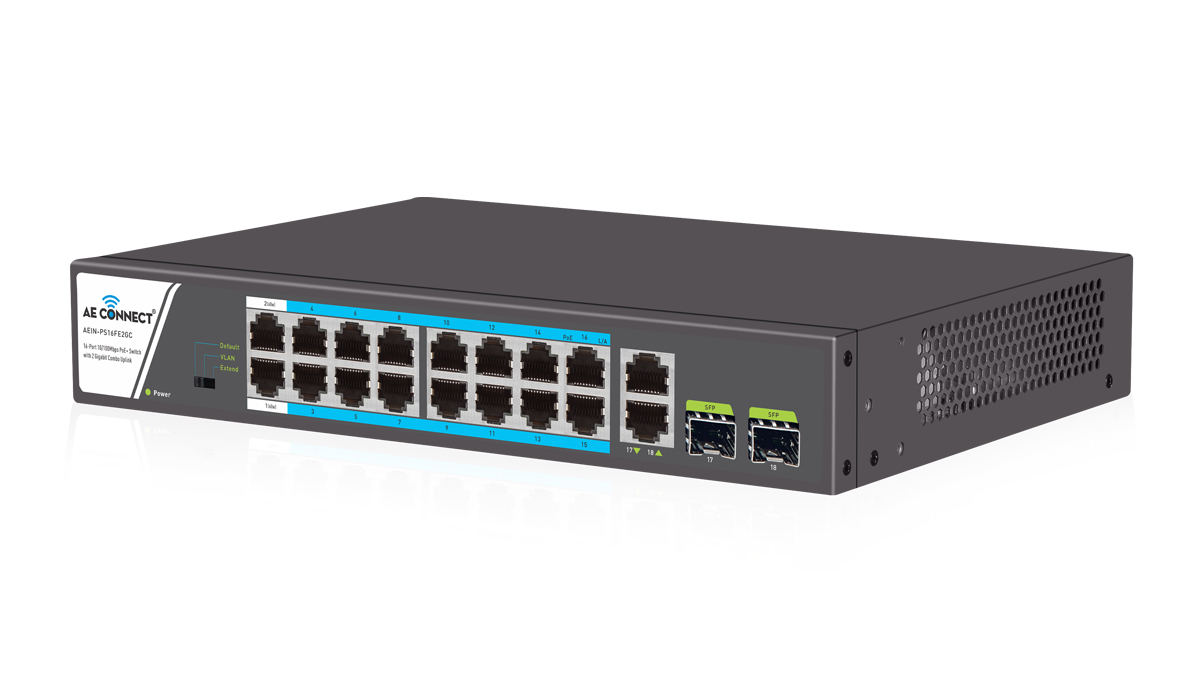

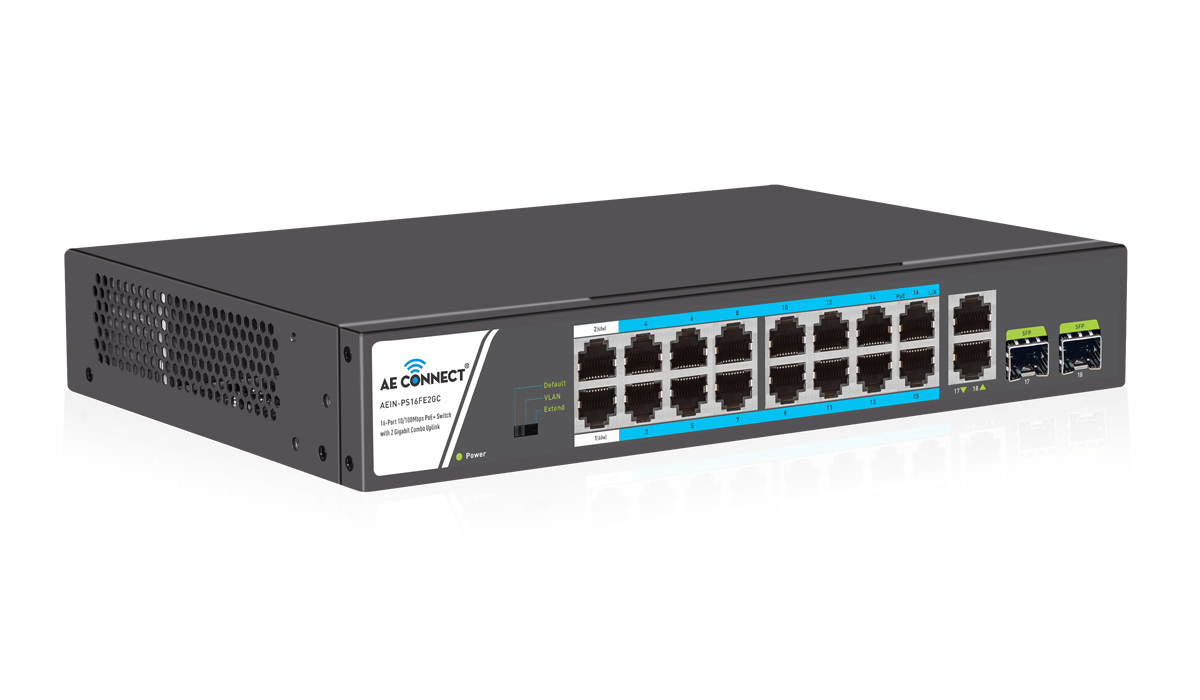

The AEIN-PS16FE2GC is a robust 16 port PoE switch designed for high-performance network applications. Equipped with 2 GE/SFP combo slots, this switch provides the flexibility needed for expanding networks while maintaining efficient power distribution to connected devices.

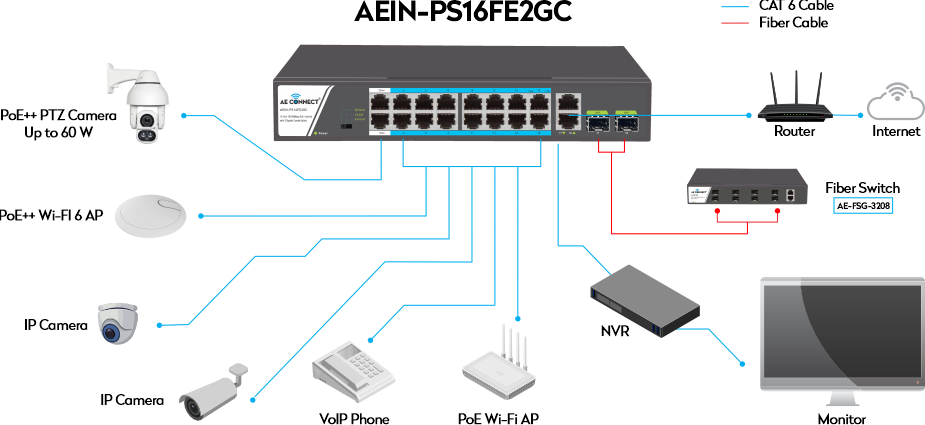

Its 16 self-adaptive PoE+ ports offer seamless 10/100M connectivity for various devices like IP cameras, VoIP systems, digital signage, and more. Furthermore, its integrated PoE priority function ensures critical devices stay powered by cutting off low-priority devices when the budget is exceeded.

Get Quote

Specification

Model	AEIN-PS16FE2GC
Downlink Ports	16*10/100M Self-adaptive PoE+ Ports (Port No.1-2 will support 60W Hi-PoE)
Uplink Ports	Port 17: 21000M RJ45 Port Port 18: 2SFP Slot (Shared)
LED Indicator	PWR, Link / Act
Transmission Mode	IEEE802.3x full duplex flow control and backpressure half duplex flow control
Bandwidth	7.2Gbps
Forwarding Rate	5.35Mpps
MAC Address	8K
PoE Power Budget	200W
Standard Protocol	IEEE802.3i 10 BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000 BASE-T IEEE802.3z 1000 BASE-LX IEEE802.3x Flow Control IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet IEEE802.3az EEE

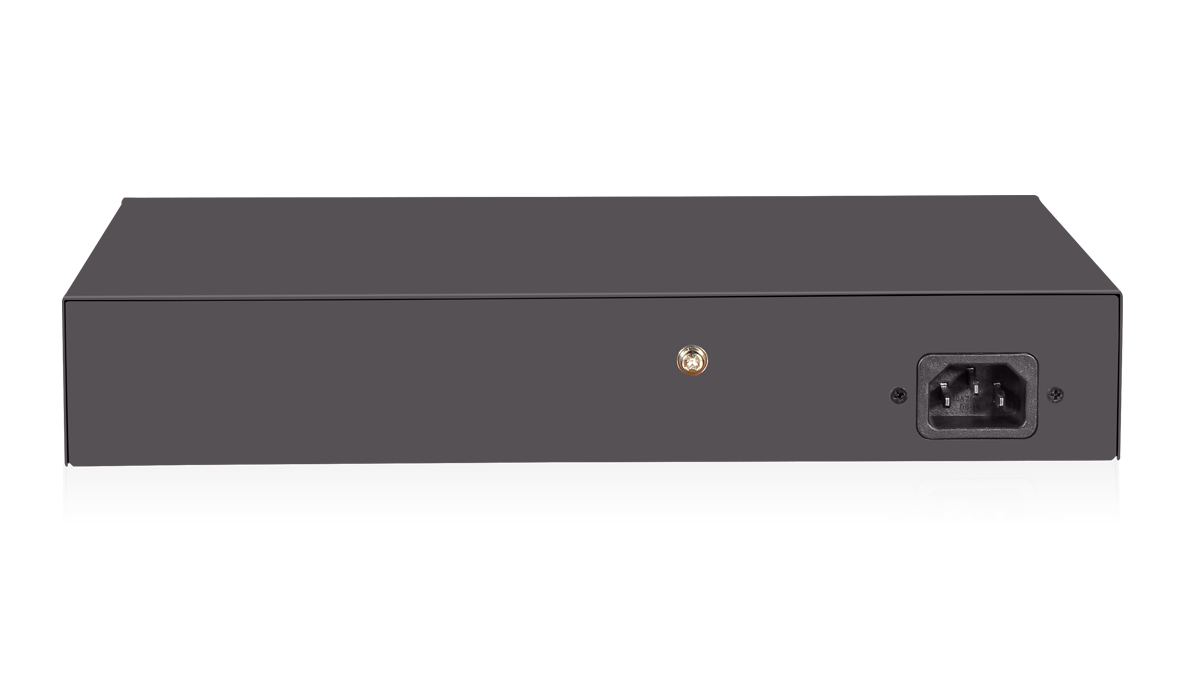

Power Supply	AC 100~240V 50/60HZ
Dimensions	282mm × 178mm × 44mm
Working temperature	Working Temperature: 0°C ~ 50°C, Humidity: 10% ~ 90% Storage Temperature: -20°C ~ 70°C, Humidity: 5% ~ 95%
