AE Connect
AEIN-PSG2402GUF

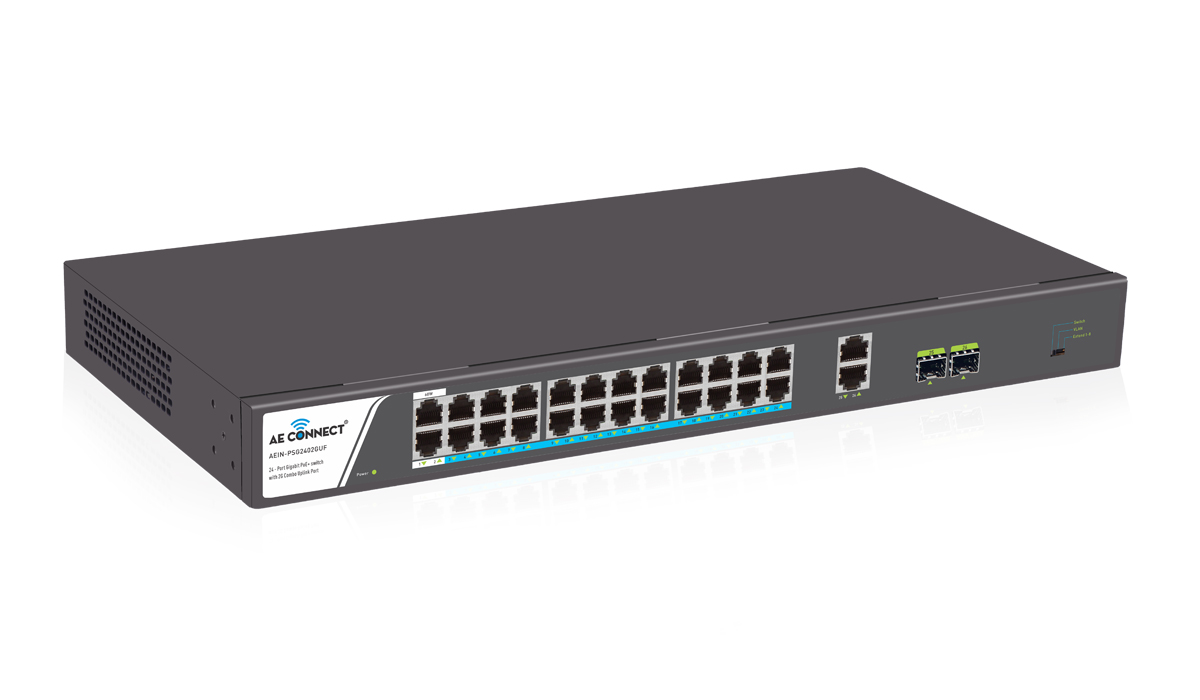

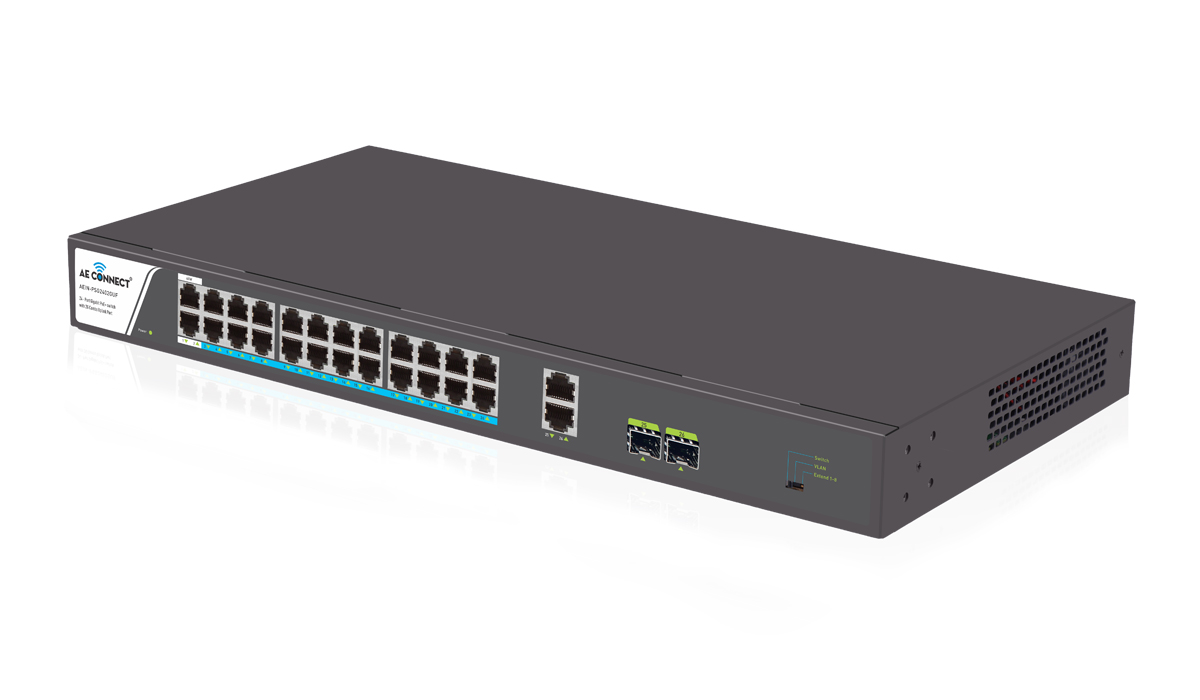

24 Port Gigabit Unmanaged PoE+ Switch

The AEIN-PSG2402GU-F is a 24 port PoE switch that tirelessly ensures your network runs smoothly. More than just a connection hub, it’s a smart, reliable powerhouse designed to keep your devices up and running, no matter what.

With 24 self-adaptive PoE+ ports, 2 SFP, and 2 RJ45 uplink slots, this 24 port PoE switch is equipped to handle a variety of devices—from IP cameras and wireless access points to VoIP phones and more. It intelligently manages power consumption, ensuring that critical devices always receive the necessary power. Unique features like ground potential protection and auto-reboot for stuck IP cameras provide added peace of mind.

Whether you’re a small business owner or a network administrator, the AEIN-PSG2402GU-F is the perfect solution to keep your network running at peak performance.

Specification

ModelAEIN-PSG2402GUF
Downlink Ports 24*10/100/1000M Self-adaptive PoE+ Ports
Uplink ports Port 25,26: 2*1000M Rj45 Ports
Port 27,28: 2* SFP Slots Uplink
LED indicators PWR, Link / Act
Transmission mode IEEE802.3x full duplex flow control and backpressure half duplex flow control
Bandwidth 56Gbps
Forwarding Rate41.66Mpps
MAC address 8K
PoE Power Budget 250W
Standard ProtocolIEEE802.3i 10 BASE-T
IEEE802.3u 100 BASE-TX
IEEE802.3ab 1000 BASE-T
IEEE802.3z 1000 BASE-LX
IEEE802.3x Flow Control
IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
IEEE802.3az EEE
Power SupplyAC 100~240V 50/60HZ
Dimensions (W×D×H)440mm*220mm*44mm
Working temperature Working Temperature: 0℃~45℃, Humidity: 10%~90%
Storage Temperature: - 20%~70%, Humidity: 5%~95%

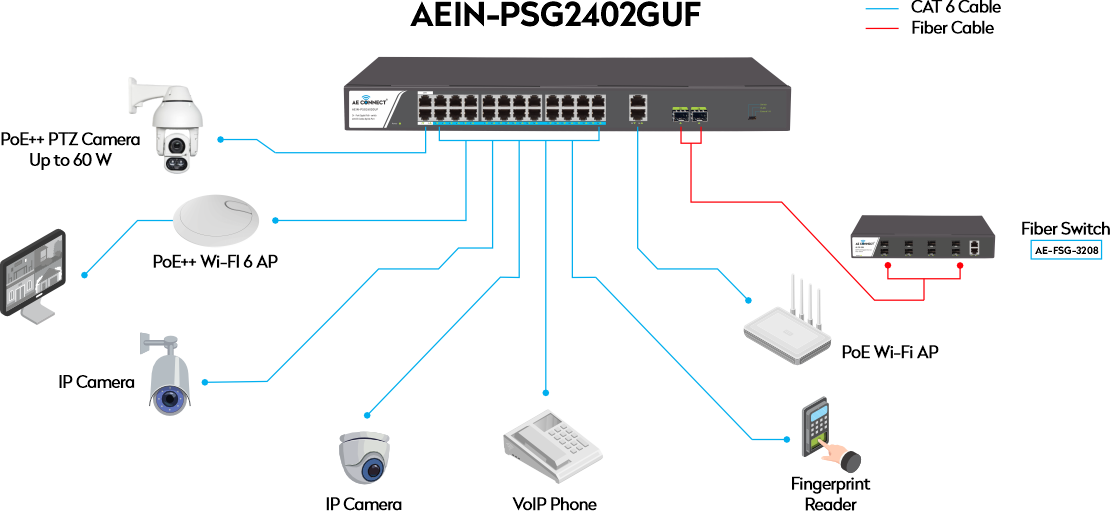

Application Diagram

Documentation

Datasheet
Certificate
Test Report
