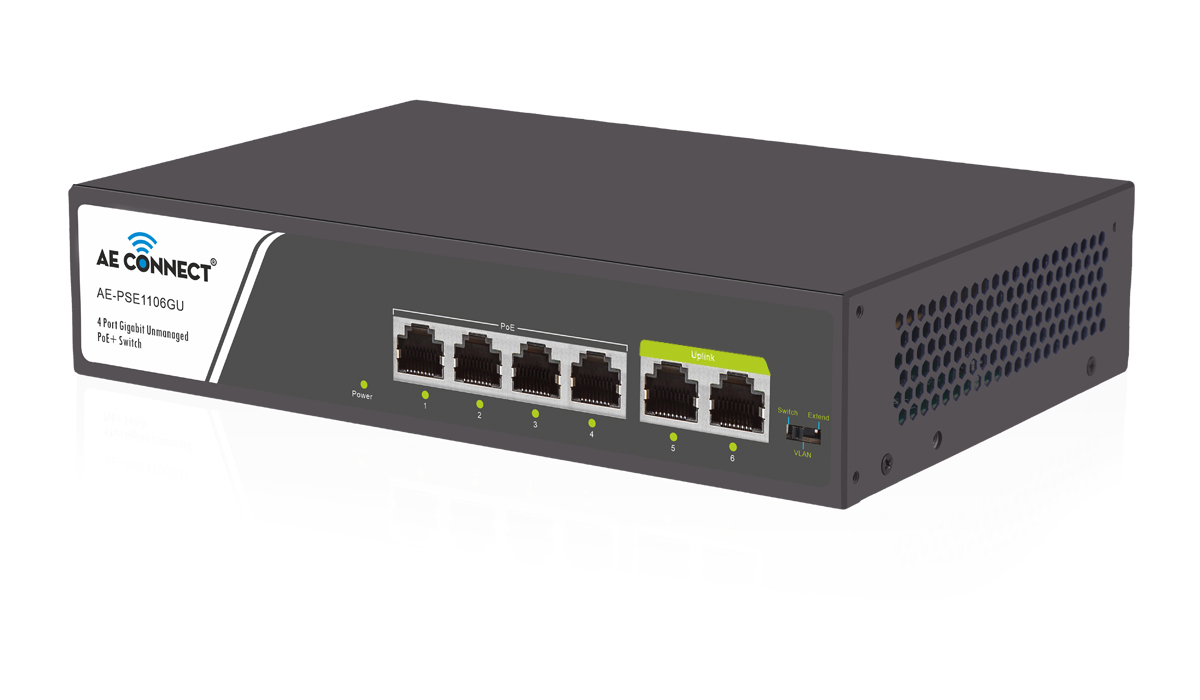

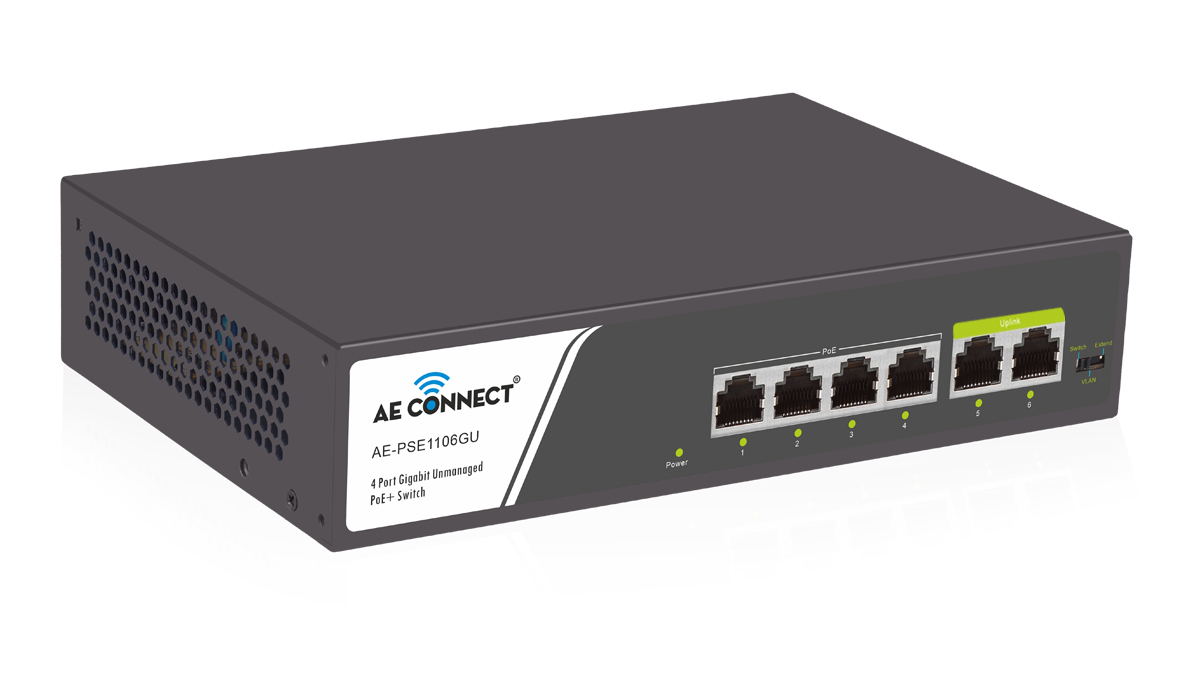

AE-PSE1106GU

4 Port Gigabit Unmanaged PoE+ Switch

The AE-PSE1106GU is a robust 4 port gigabit PoE switch designed to meet the demands of modern networking environments. With its combination of Gigabit uplink ports and adaptive PoE capabilities, this switch offers a flexible and efficient solution for both traditional and Power over Ethernet (PoE) applications.

The switch’s 4-port RJ45 PoE functionality provides power and data transmission to compatible devices, eliminating the need for separate power outlets. Two uplink ports ensure fast and reliable data transfer, making the switch well-suited for bandwidth-intensive applications such as video streaming, file sharing, and VoIP. The switch supports IEEE 802.3x flow control and backpressure, helping to prevent network congestion and data loss. Its compact design and easy installation make it a convenient choice for various network environments.

Specification

ModelAE-PSE1106GU
Downlink Ports4*10/100/1000M RJ45 ports
Uplink Port2*1000M RJ45 Uplink ports
Total Power Supply65W
LED IndicatorPower Link/Act
Transmission ModeIEEE802.3 full duplex flow control and backpressure
half duplex flow control
Backplane Bandwidth12Gbps
Packet Forwarding Rate8.93Mpps
MAC Address2K
Standard Protocol IEEE802.31 10 BASE-T
IEEE802.3u 100 BASE-TX
IEEE802.3ab 1000 BASE-T
IEEE802.3x Flow Control
IEEE802.3az EEE
Power SupplyAC 100~240V 50/60HZ
Size200mm x 133mm x 44mm
Environmental Specification Working Temperature: 0°C~50°C, Humidity: 10%~90%
Storage Temperature: -20°C~70°C, Humidity: 5%~95%

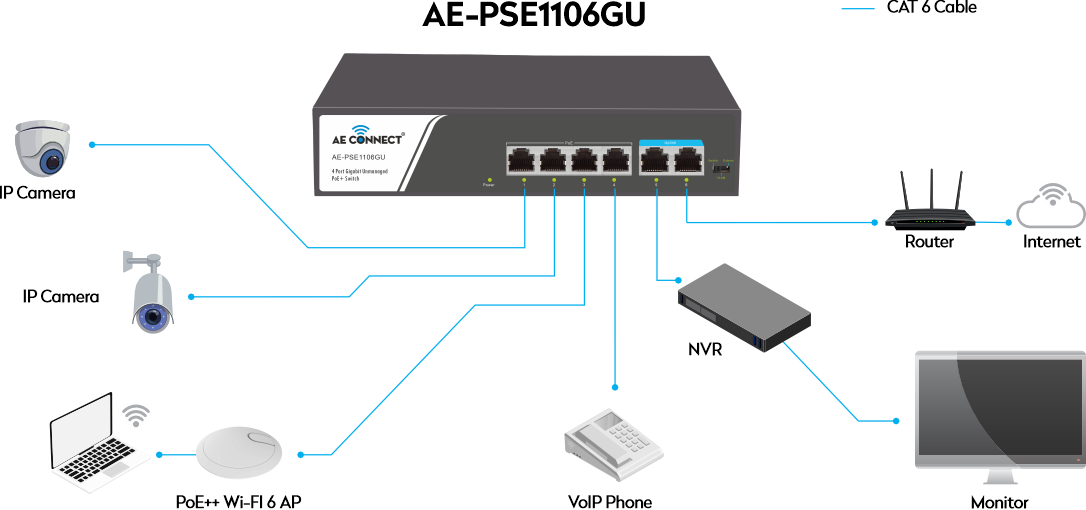

Application Diagram
