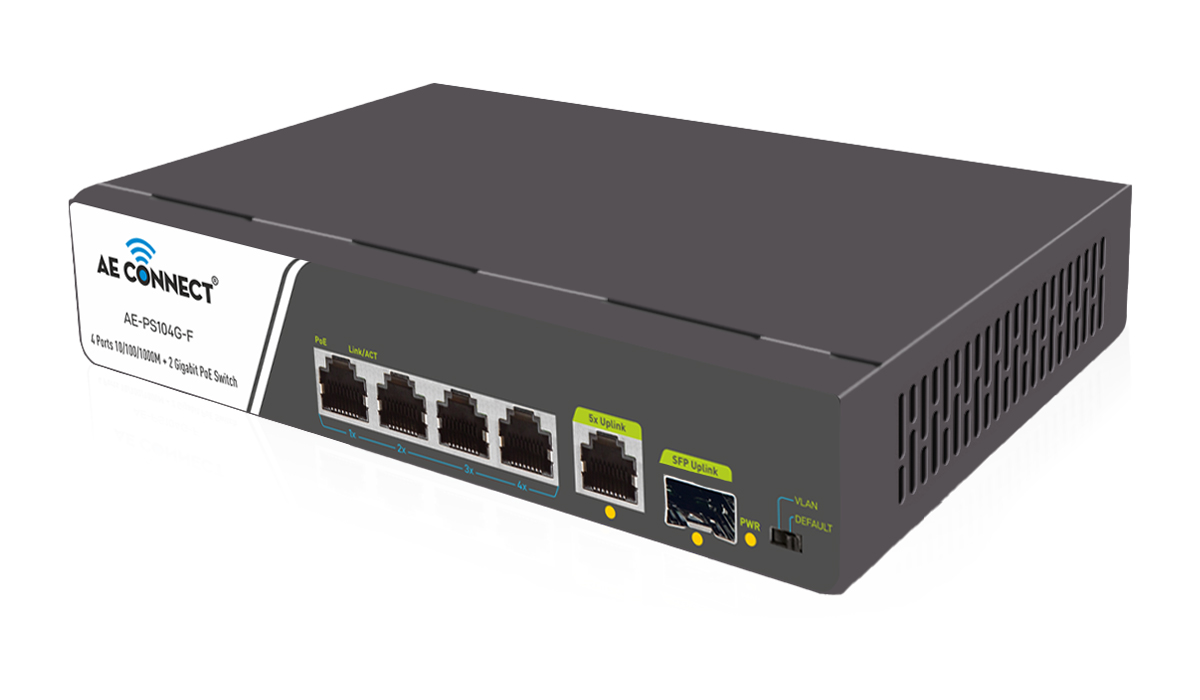

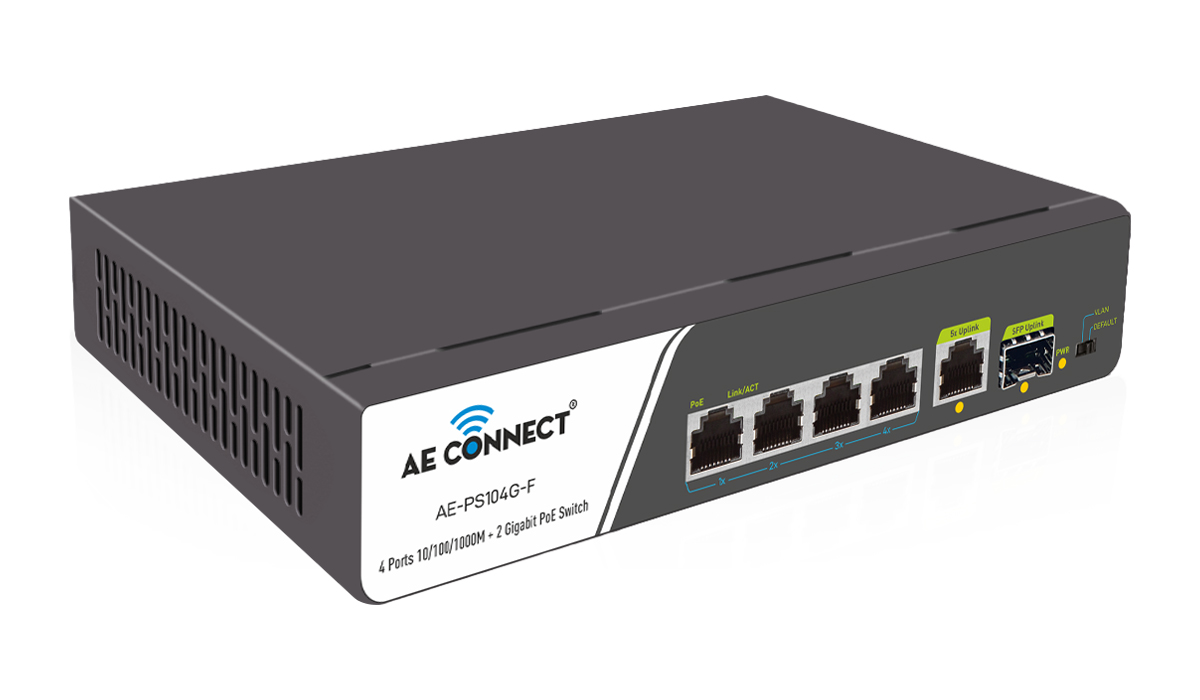

4 Port Gigabit PoE Switch
home
Unmanaged PoE+ Switches
4 Port Gigabit PoE Switch
Overview
Specification
Overview

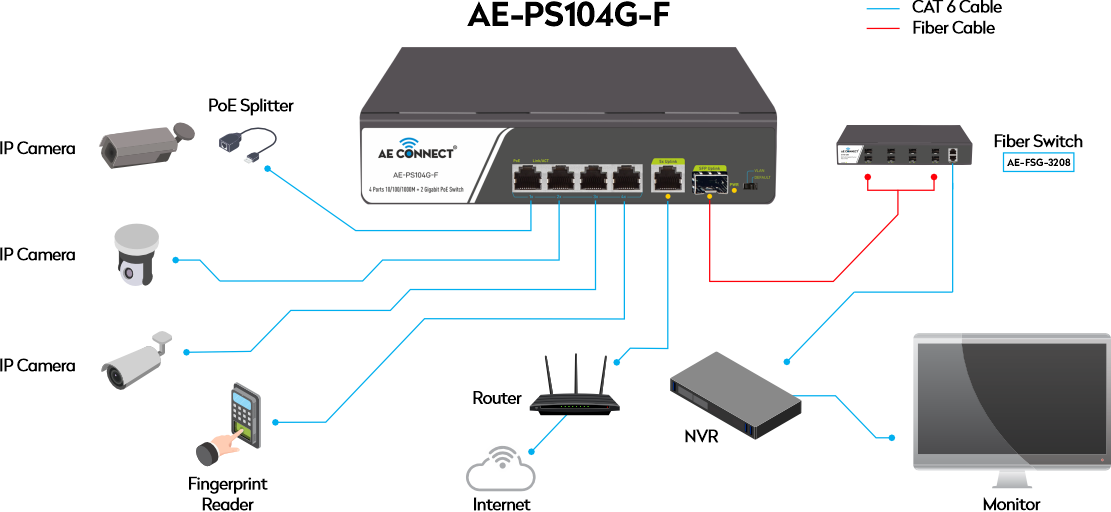

Featuring Aeconnect’s 4 port PoE switch provides an easier installation way for PoE devices, such as IP cameras, wireless AP, VoIP. Two high speed uplink ports the built-in two gigabit uplink ports provide fast connection to servers or the backplane of the gigabit speed. The effective connectivity of the four gigabit ports, allows growing business networks, classrooms and workgroups to obtain benefits from the demand for superior performance and sustain network expansion. This high-performance switch features with non-blocking, wire-speed switching, and 8.8Gbps switching capacity.
Model number:
AE-PS104G-F
PoE standard:
IEEE 802.3AF/AT
Type:
Unmanaged
PoE+ port:
4x 10/100 /1000 PoE+ port
Uplink copper port:
1 x 10/100/1000 RJ 45 uplink port
Uplink fiber port:
1 x 10/100/1000 SFP (Fiber) uplink port
Surge protection:
6 KV
Total power budget:
65 W
Warranty:
3 years
Product Name
6-Port PoE Switch with 4 PoE Ports and 2 Uplink
Model
AEPS104G-F
Connector Type
6 Port 10/100/1000 ( 4 Port PoE+ with 1x RJ45 + 1x SFP Port)
Network Media
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter)
Bandwidth
10Gbps (non-blocking)
Address
Database Size
1K
MTBF
190,000 hours (about 21 years)
Forwarding Mode
Store-And-Forward Network
Protocols
IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE802.1af DTE Power via MDI; IEEE 802.3af/at
LED Display
System: power supply; Every Port: connecting, PoE working status

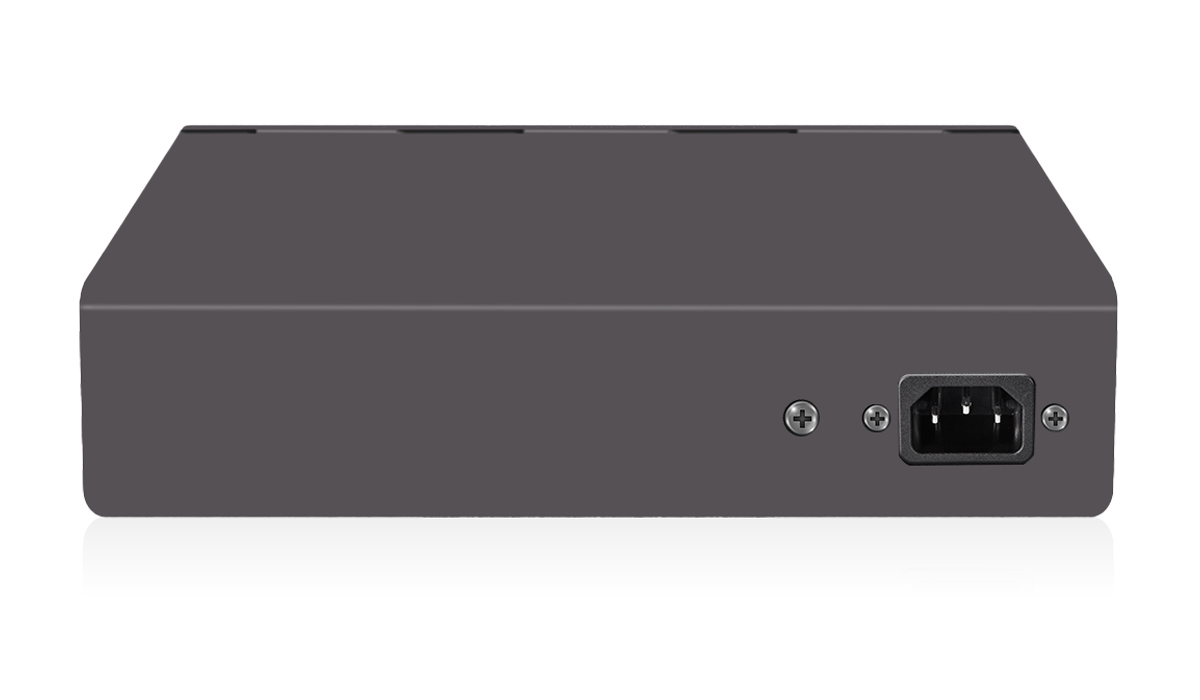

Power Supply
Power input: AC100-240V 50/60Hz; (every country use a custom power plug)
PoE Ports
Port1-4 support POE
PoE Port Power
30W Per Port (Total 65W Power Budget)
PoE Standard
IEEE 802.3af/at
PoE Feature
All ports support MDI/MDIX
Working Environment
Operating Temperature:
0 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Operating
Humidity:
10% ~ 95%, non-condensing
Certication
CE Mark ,commercial; CE/LVD EN60950, RoHS
Radiation
CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B
Transmission Distance
Optical port 20km by default. 20km,40km,60km,80km,120km can be customised.
Warranty
3 year warranty
