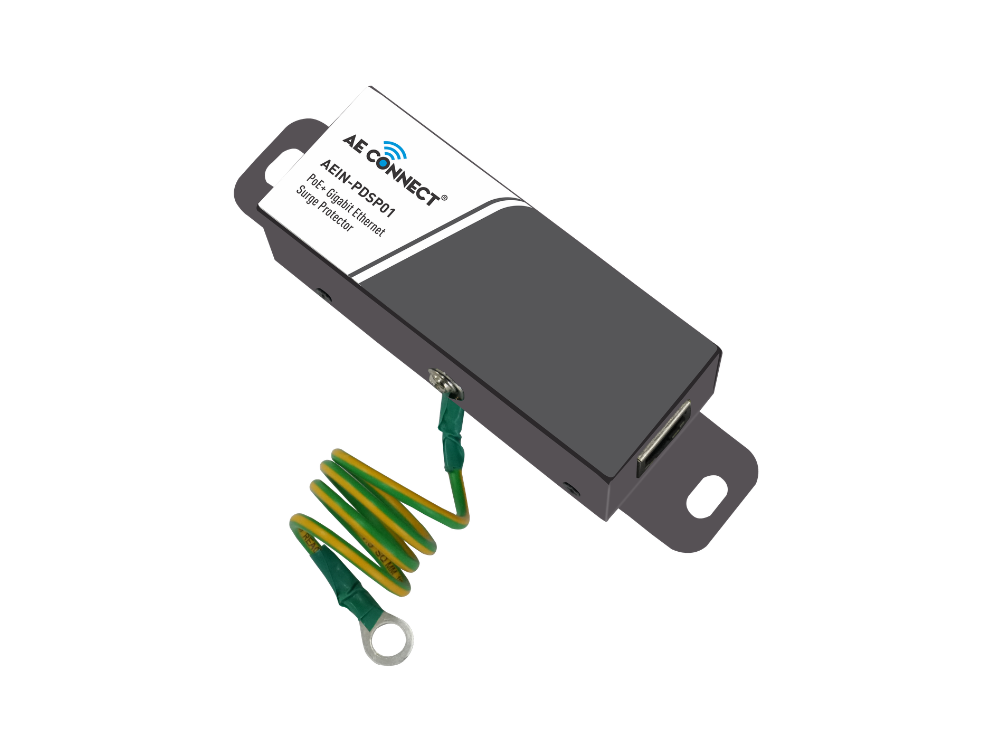

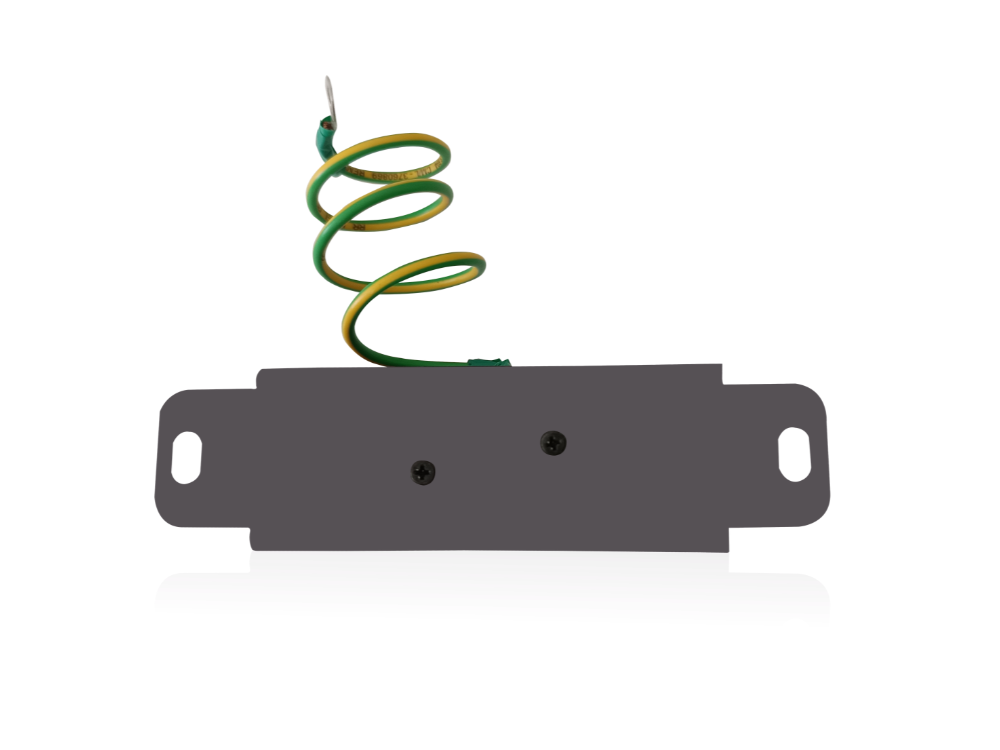

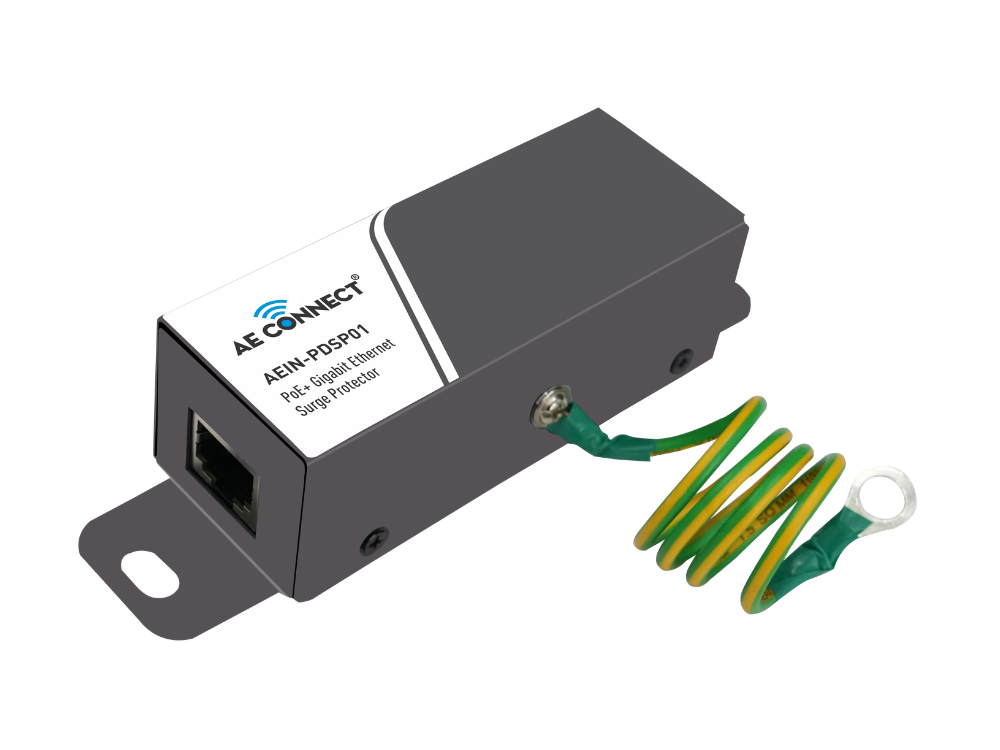

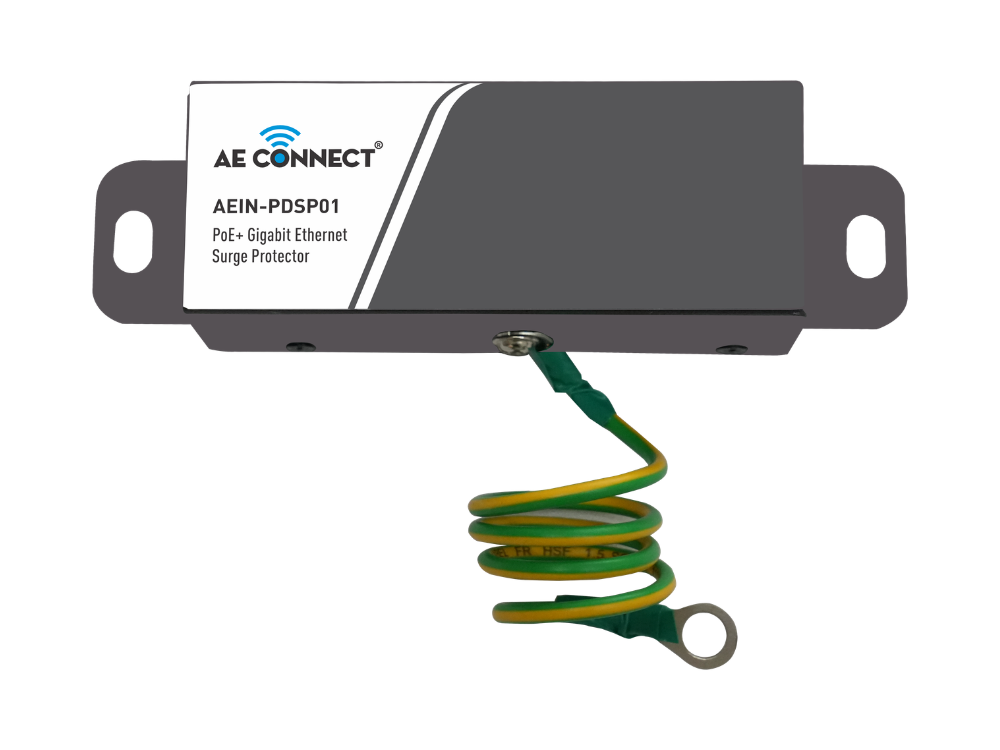

PoE Gigabit Ethernet Surge Protector AEIN-PDSP01

AEIN-PDSP01

PoE+ Gigabit Ethernet Surge Protector

DATASHEET

Featuring a PoE+ Gigabit Ethernet surge protector, the AEIN-PDSP01 is an inline protection module that shields your network devices from lightning strikes, voltage spikes and transient surges travelling through Ethernet cabling. This Ethernet surge protector delivers a simple, economical and highly reliable way to safeguard PoE-powered equipment without affecting data speed or power delivery. With 10KA+ discharge capacity, full IEEE 802.3af/at/bt pass-through and IEC 61643-21 compliance, it is the ideal choice for outdoor IP cameras, rooftop access points and long-run Ethernet links where surge risk is highest.

PoE Standard: IEEE 802.3af / at / bt PoE pass-through support
RJ45 Ports: 2x 10/100/1000M Shielded (Input / Output)
Discharge Current: 10KA+ @ 8/20 µs
Nominal Voltage: 48V ~ 57V (Max. 12V ~ 70V), 1A nominal current
ESD/EMP Protection: Absorbs transient surge 100V/s to 1kV/µs
Test Standard: IEC 61643-21
Operating Temperature: -40°C ~ 85°C
Dimension: 90 x 34 x 30 mm
Warranty: 3 years

Get Quote

Specification

Model	AEIN-PDSP01
Product	PoE+ Gigabit Ethernet Surge Protector
Interface Connections	2x RJ45 Female Connectors
Connector	RJ45 Shielded connector (Input / Output)
Data Rate	10/100/1000 Ethernet
IEEE 802.3af PoE Support	Yes
IEEE 802.3at PoE Support	Yes
IEEE 802.3bt PoE Support	Yes
Nominal Voltage Range	48V - 57V
Max Voltage Range	12V - 70V
Nominal Current	1A
ESD/EMP Protection	Absorbing transient current Surge 100V/s to 1kV/µs
DC Spark-Over Voltage	90V @ 100V/s
Max Impulse Spark-Over Voltage	600V @ 1kV/µs
Discharge Current	10KA+ @ 8/20µs
Min Insulation Resistance	1GΩ @ 50V
Max Capacitance	1.5 pF @ 1 MHz
Operating Temperature	-40 to 85 ℃ (-40 to 185 ℉)
Storage Temperature	-40 to 85 ℃ (-40 to 185 ℉)
Operating Humidity	10 to 90% Noncondensing
Test Standard	IEC 61643-21
Dimensions	90 x 34 x 30 mm
