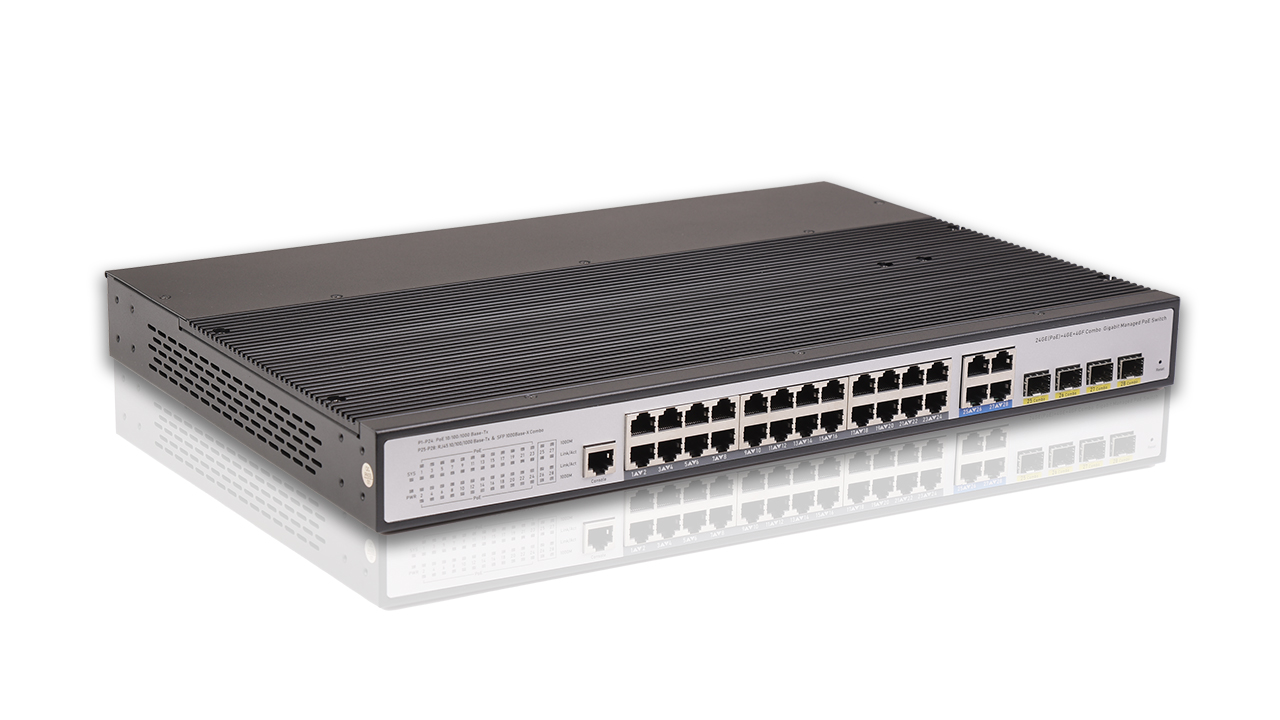

24 Port Industrial Gigabit L3 Managed PoE+ Switch AE700-IPS24GE4GC-L3-M

AE700-IPS24GE4GC-L3-M

24 Port Industrial Gigabit L2 Managed PoE+ Switch

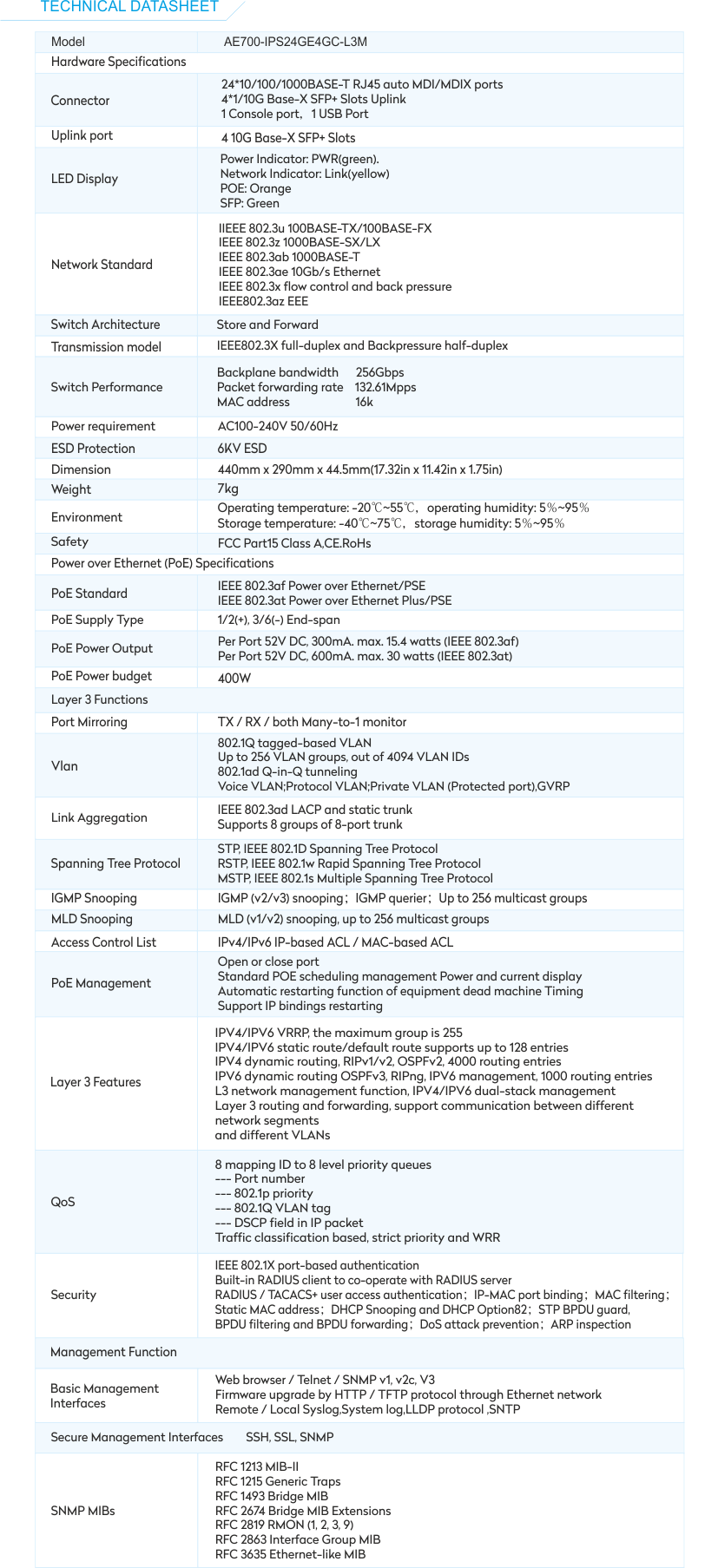

DATASHEET

The AE700-IPS24GE4GC-L3-M is a 24-port Industrial Managed PoE Switch with 4x10Gbps SFP+ ports, supporting IEEE802.3af/at PoE and advanced Layer 3 features such as Static Route, RIP, and OSPF.

It operates in extreme conditions with a temperature range from -40°C to 85°C and features ±15KV ESD protection and ±6KV surge immunity for enhanced reliability. Designed for industrial environments like railways and traffic, it supports IPv6/IPv4 management, VLAN, storm control, and ERPS for flexible networking and high-speed data transmission.

24x10/100/1000Mbps PoE ports
4x10Gbps SFP+ ports
IEEE802.3af/at PoE compliant
Self-adaption: RJ45 port supports 10/100/1000Mbps Auto MDI/MDIX
Designed for railway, traffic, and other industrial environments
Surge protection: Protect the device from lighting surges and other electrical hazards
Managed: Support remote web management, VLAN, storm control, IPV6 management, etc
Layer 3 Features, Static Route, RIP, OSPF, etc
Working Temperature: -40 to 85°C
Considerate Design: IP40 industrial design
