Specification

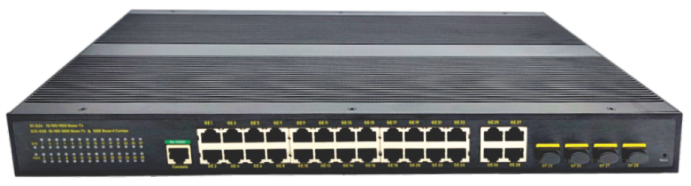

| Model | AE700-IPS24GE4GF-M |
| Port description | 24 x ethernet port (RJ45) 10/100/1000M auto-negotiation 4 x optical port (SFP) 1000Mbps |
| Power supply | Input voltage (DC): 48-56V |
| Shell | IP40 protection level, fanless design |
| Static electricity | 8KV-15KV |
| Surroundings | Working temperature: -40℃~75℃ |
| MTBF | 100,000 hours |
| Polarity reversal (MDX/MIDX) | Support |
| Flow control | Support |
| Jumbo Frame | Support 10Kbytes |
| Spanning Tree Protocol (Spanning Tree) | Support STP/RSTP/MSTP |
| Ring Protocol | Support ERPS |
| Link Aggregation | Supports 12 groups |
| Multicast | Support IGMP Snooping |
| Port Mirroring (Port Mirroring) | Support |
| Storm Control | Support |
| Port Traffic Statistics (Interface Counters) | Support |
| QINQ | Support |
| 802.1X | Support |
| Radius/Mac Certification | Support |
| Port Isolation | Support |
| Rmon | Support |
| NTP client | Support |
| DHCP client | Support |
| DHCP snooping | Support |
| Ping/tracert detection | Support |
| Dying gasp | Support |
| DDM | Support |
| Port security | Support |
| IP Source Guard | Support |
| Device Scanning | Support |
| Access Control Lists (ACLs) | Support for ACL 500 Support for IP standard ACLs Support for MAC extended ACLs Support for IP extended ACLs |
| Quality of Service (QOS) | Support QoS re-marking, priority mapping Support SP, WRR queue scheduling Support ingress rate limiting, egress rate limiting Supports flow-based QoS |
| Command Line (CLI) | Support |
| Managing the serial port (Console) | Support |
| Telnet/SSH | Support |
| Manage IP | Support IPV4/IPV6 |
| WEB Management | Support |
| SNMP | Support SNMPv1/v2c/v3 |
| User Management | Support |
| System Log | Support |
| File Upload (Configuration File Download/Upload) | Support |
| Upgrade Firmware | Support |
