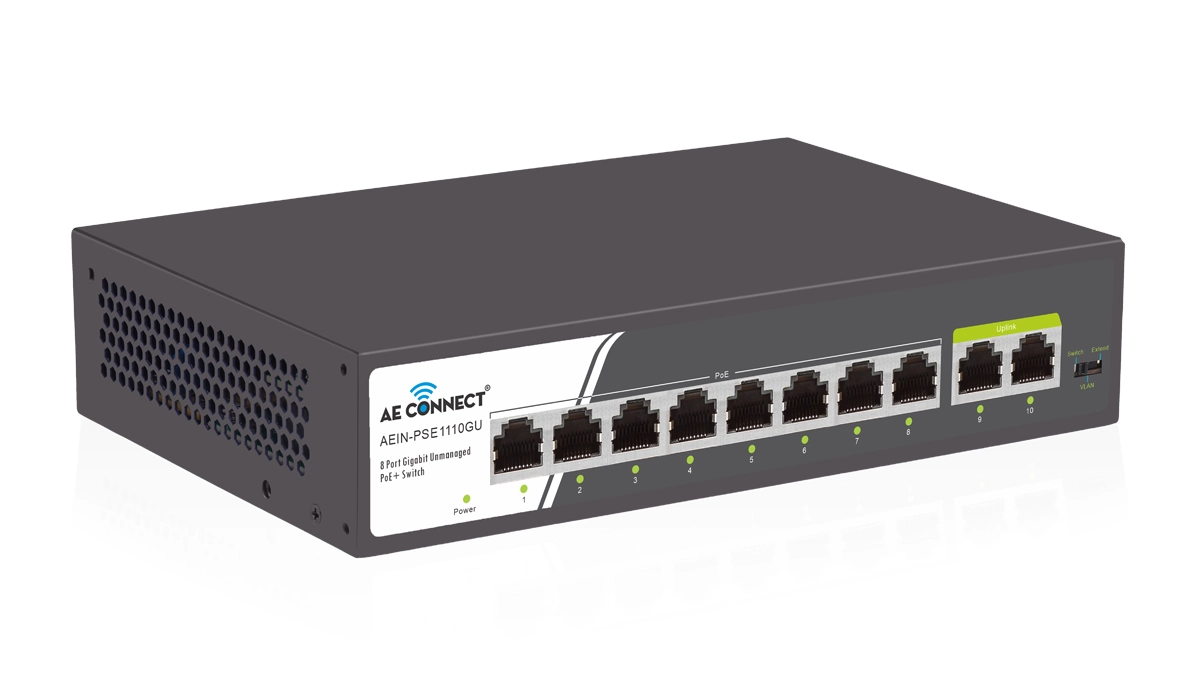

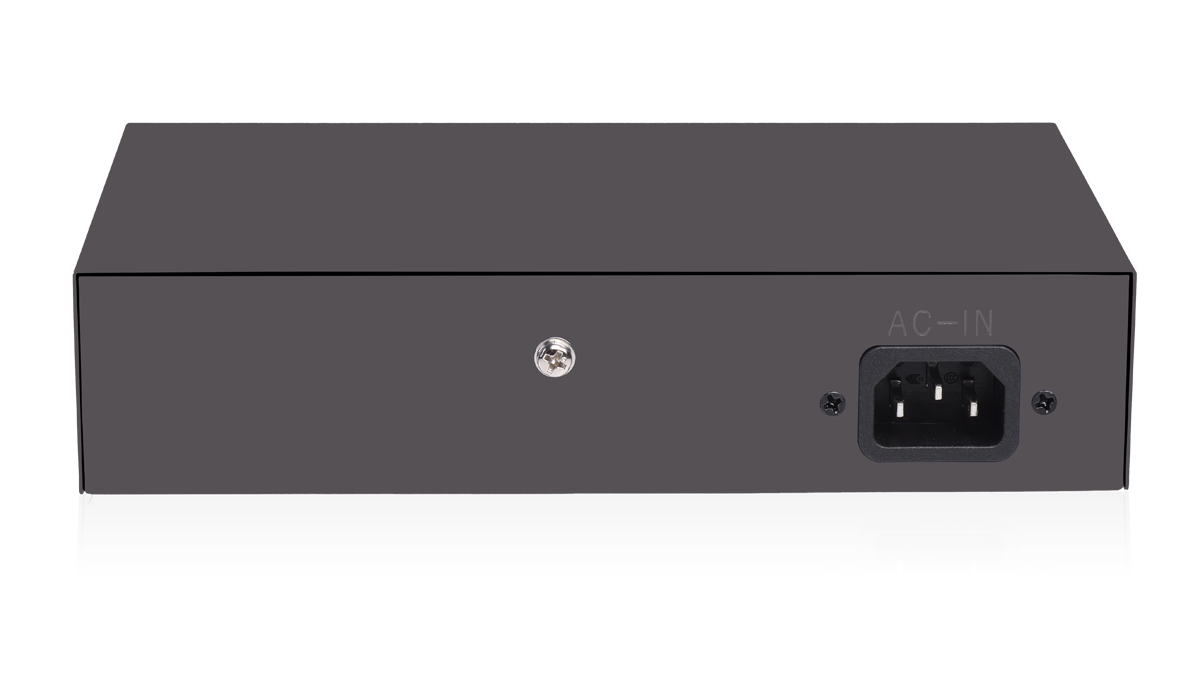

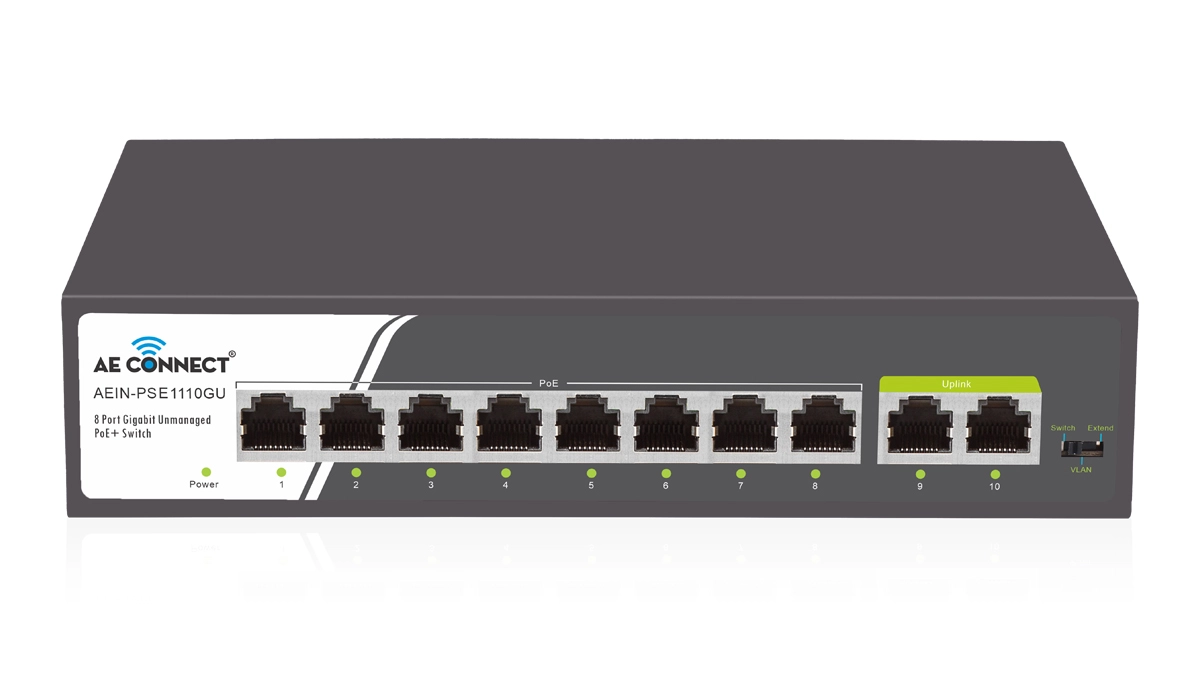

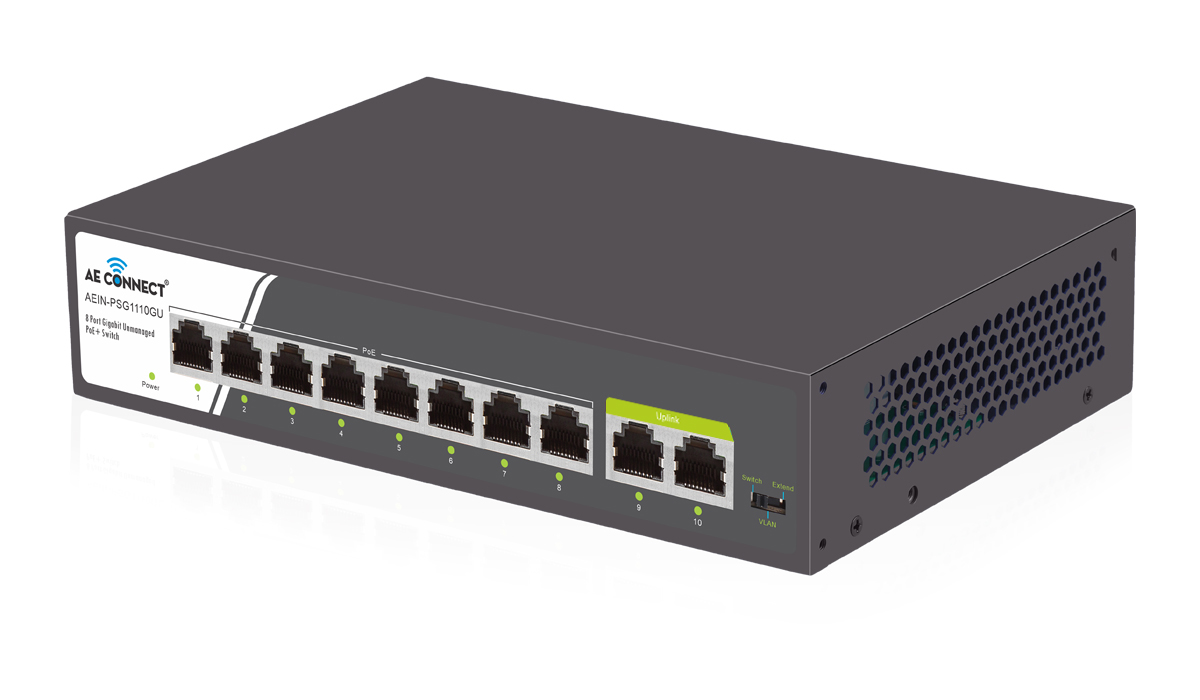

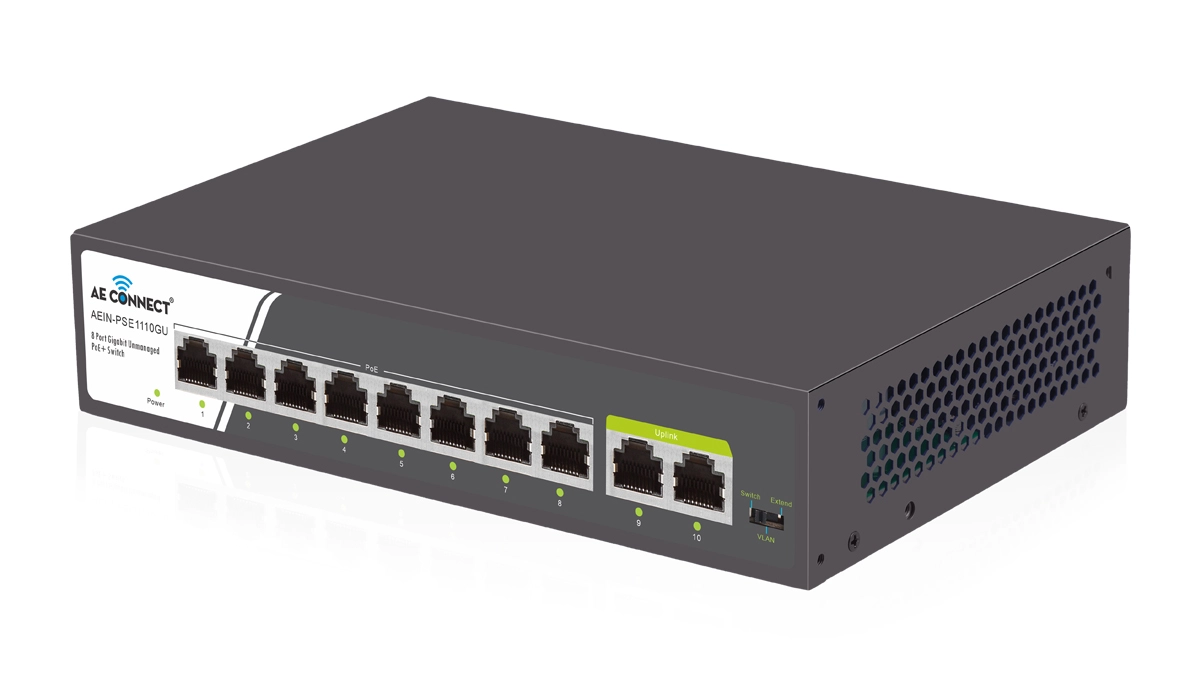

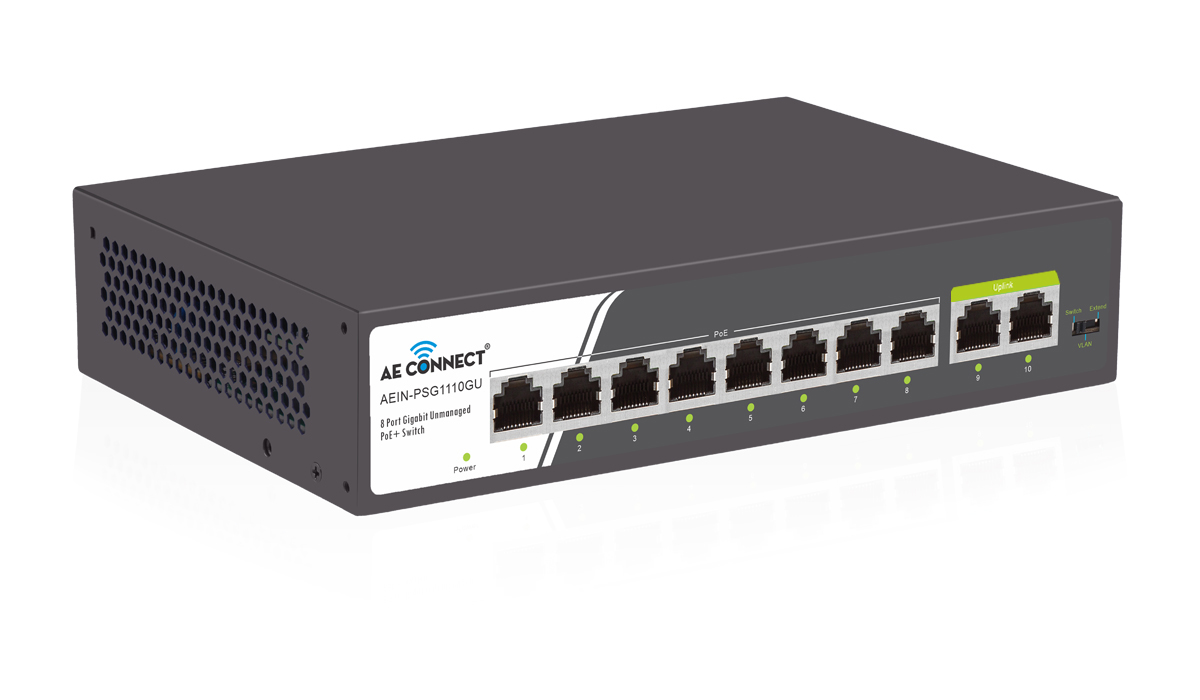

AE-PSE1110GU 8 Port PoE Switch with Gigabit Uplinks

AE-PSE1110GU

8 Port Gigabit Unmanaged PoE+ Switch

DATASHEET

Enhance your network with the AE-PSE1110GU, an 8 port PoE switch designed for seamless performance. With 8×10/100/1000M adaptive RJ45 ports, 2×1000M uplink ports, and a 20Gbps backbone bandwidth, this switch delivers high-speed data transfer and reliable connectivity.

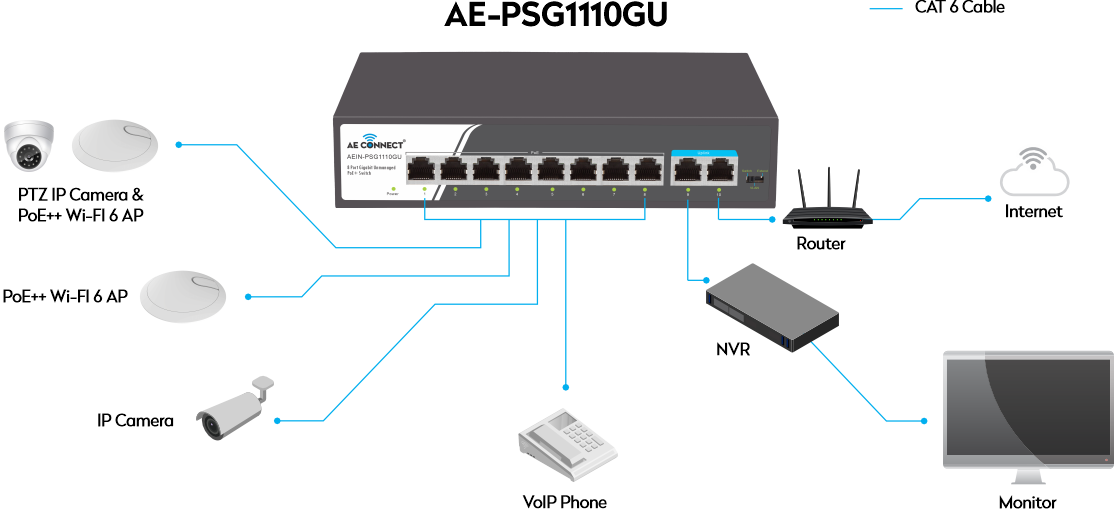

Each port supports PoE with up to 30W output, making this 8 port PoE switch ideal for powering IP cameras, VoIP phones, wireless access points, and more.

Perfect for small to medium businesses, campuses, and hotels, the AE-PSE1110GU offers plug-and-play simplicity with robust network support.

8*10/100/1000M Adaptive RJ45 Ports (PoE power supply)
2*1000M RJ45 Uplink Ports
Backplane Bandwidth: 20Gbps
Packet Forwarding Rate: 14.88Mpps
Supports smart PoE power supply
Supports one-key Switch, VLAN, Extend
Large buffer design, high-definition video does not freeze
Supports IEEE 802.3x full-duplex flow control and backpressure half-duplex flow
Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Dimensions: 200mm*133mm*44mm

Get Quote

Specification

Model	AE-PSE1110GU
Downlink Ports	8*10/100/1000M RJ45 ports
Uplink Ports	2*1000M RJ4S Uplink ports
Total Power Supply	120W
LED Indicator	Power Link / Act
Transmission Mode	IEEE802.3 full duplex flow control and backpressure Half duplex flow control
Backplane Bandwidth	20Gbps
Packet Forwarding Rate	14.88Mpps
MAC Address	2K
Standard Protocol	IEEE802.3i 10 BASE-T IEEE802.3u 100 BASE-TX IEEE802.3ab 1000 BASE-T IEEE802.3x Flow Control IEEE802.3az EEE
Power Supply	AC 100~240V 50/60HZ
Size	200mm × 133mm × 44mm
Environmental Specification	Working Temperature: 0℃ ~ 50℃, Humidity: 10% ~ 90% Storage Temperature: -20℃ ~ 70℃, Humidity: 5% ~ 95%
