8 Port PoE Switch | Fast Ethernet with Gigabit Uplinks

AE-PSE8002GU

8 Port Fast Ethernet Unmanaged PoE+ Switch

DATASHEET

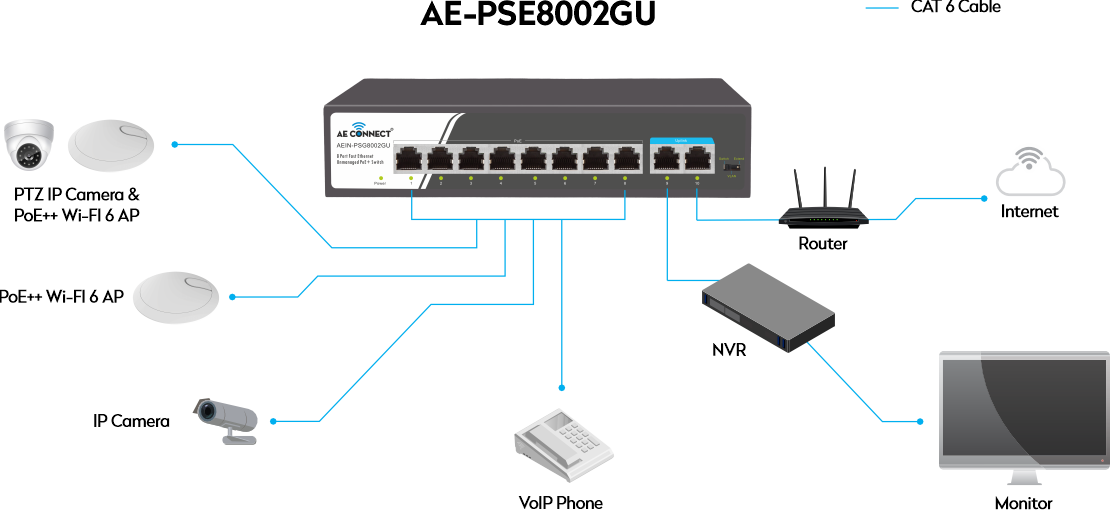

8 port PoE switch AE-PSE8002GU is a high-performance networking solution that combines fast Ethernet speeds with Gigabit uplinks, delivering both reliable power and data connectivity. This unmanaged PoE+ switch is designed for plug-and-play simplicity, making it an excellent choice for small-to-medium network deployments such as office LANs, video surveillance systems, wireless access point networks, and VoIP phone setups.

With smart features like one-key VLAN, long-distance PoE support, robust flow control, and a high total PoE power budget, the 8 port PoE switch helps streamline network management. It allows you to power devices directly over Ethernet, reducing the need for extra adapters, simplifying cabling, cutting down installation costs, and centralizing power delivery.

8*10/100M RJ45 Adaptive RJ45 port (PoE power supply)
2*1000M RJ45 Uplink port
Backplane Bandwidth: 5.6Gbps
Packet Forwarding Rate: 4.17Mpps
Supports smart PoE power supply
Supports one-key Switch, VLAN, Extend
250Mtr Long Distance supported
Large buffer design, high-definition video does not freeze
Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Dimensions: 200mm*133mm*44mm

Get Quote

Specification

Model	AE-PSE8002GU
Downlink Ports	8*10/1mM RJ45 ports
Uplink Ports	2*1000M RJ45 uplink ports
Total Power Supply	120W
LED Indicators	Power, Link/Act
Transmission Mode	IEEE802.3 full duplex flow control and backpressure half duplex flow control
Backplane Bandwidth	5.6Gbps
Packet Forwarding Rate	4.17Mpps
MAC Address	2K
Standard Protocols	IEEE802.3i 10 BASE-T IEEE802.3u 100 BASE-TX IEEE802.3ab 1000 BASE-T IEEE802.3x Flow Control IEEE802.3az EEE
Power Supply	AC 100~240V 50/60Hz
Size	200mm × 133mm × 44mm
Environmental Specification	Working Temperature: 0°C ~ 50°C, Humidity: 10% ~ 90% Storage Temperature: -20°C ~ 70°C, Humidity: 5% ~ 95%
