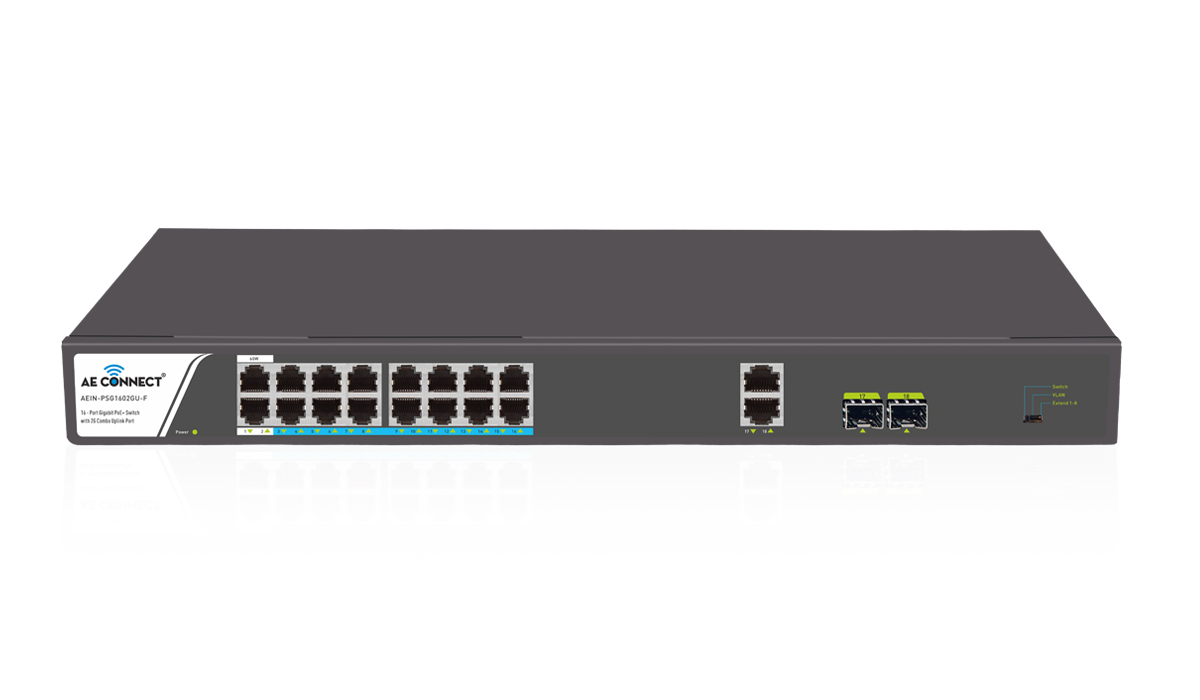

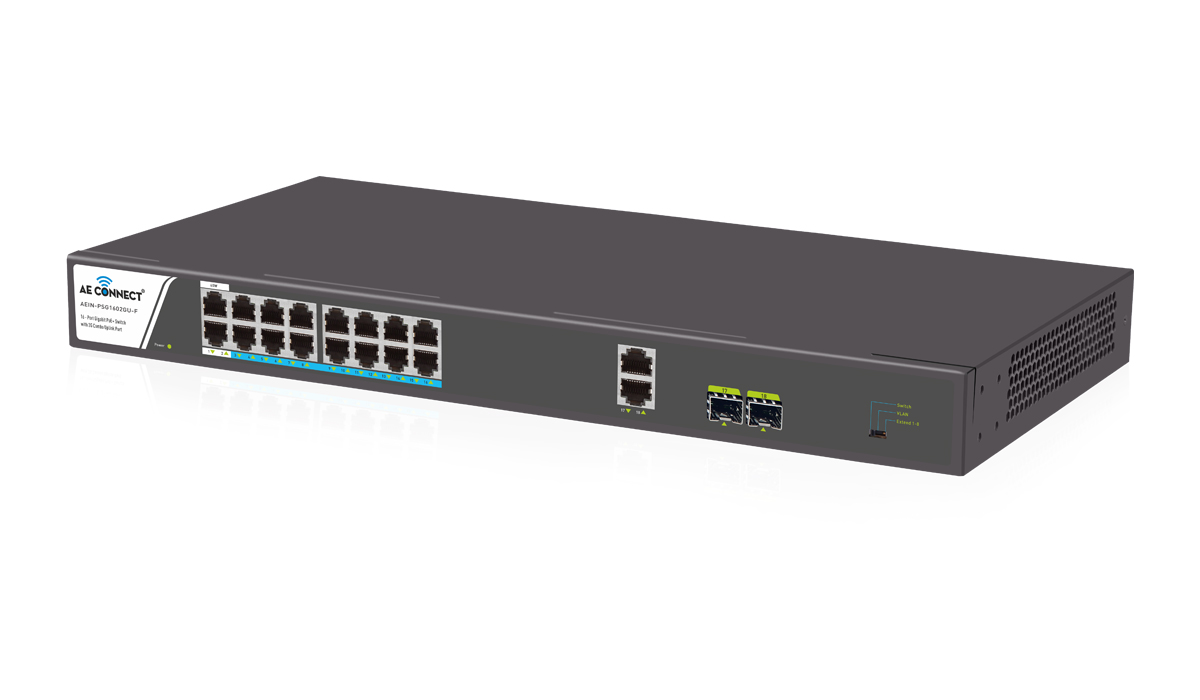

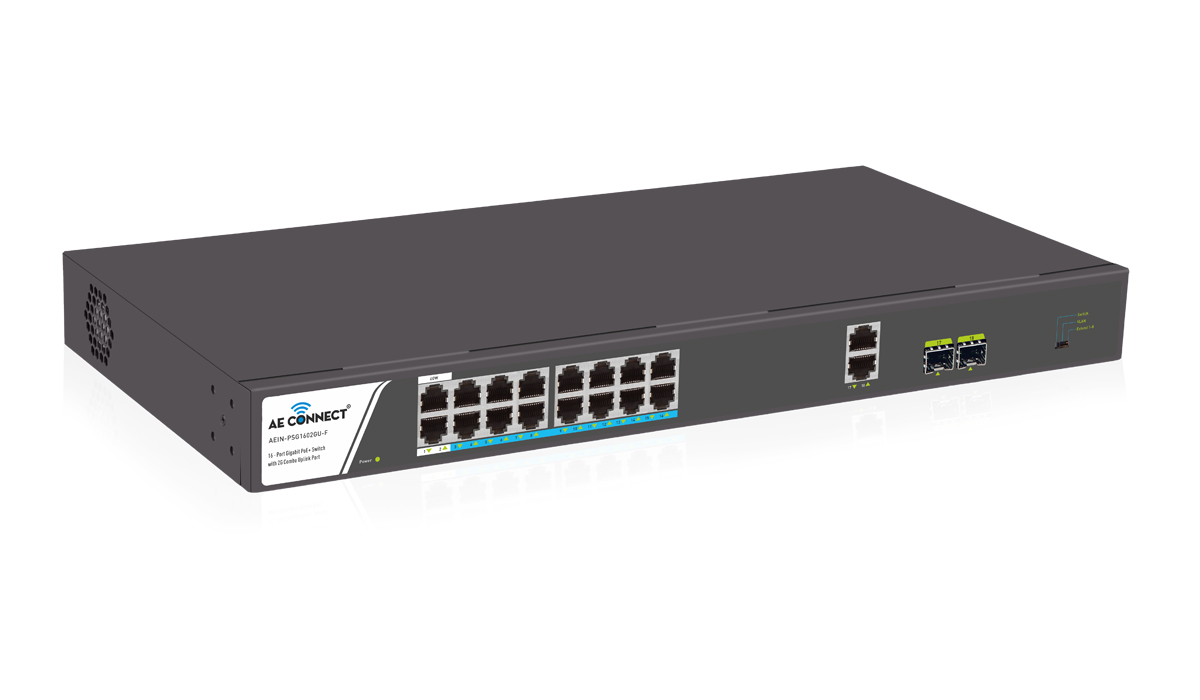

16 Port Gigabit PoE Switch with Uplinks for IP Networks

AEIN-PSG1602GUF

16 Port Gigabit Unmanaged PoE+ Switch

DATASHEET

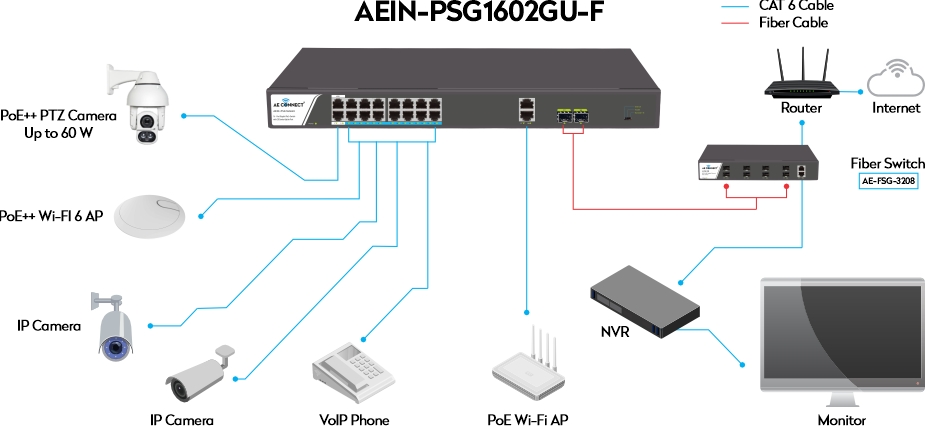

The AEIN-PSG1602GUF is a high-performance 16 port PoE switch designed for demanding network environments. It features 16×10/100/1000M self-adaptive PoE+ ports, offering seamless integration with various PoE-enabled devices such as IP cameras, VoIP systems, wireless access points, and more. With 2x1000M SFP and 2x1000M RJ45 slots, the switch provides flexible uplink options, ensuring stable long-distance data transmission.

Designed for simplicity and reliability, this 16 port PoE switch is 19-inch rack-mountable—perfect for enterprise-level networking needs. It offers both performance and security with auto-detecting capabilities for stuck IP cameras and built-in short-circuit/over-current protection.

Upgrade your network with the AEIN-PSG1602GUF, engineered for efficiency, performance, and long-lasting reliability.

16x10/100/1000M Self-adaptive PoE+ Ports
2x1000M SFP and 2x1000M Rj45 Slots
PoE+ Power Budget: 200W
Backplane Bandwidth: 40Gbps
Packet Forwarding Rate: 29.76Mpps
19-inch Rack Mountable
250 Mtr Long Distance Supported
Dimensions: 440mm x 220mm x 44mm

Get Quote

Specification

Model	AEIN-PSG1602GU-F
Downlink Ports	16*10/100/1000M Self-adaptive PoE+ Ports
Uplink Ports	Port 17,18: 21000M RJ45 Ports Port 19,20: 2 SFP Slots Uplink
LED Indicators	PWR, Link / Act
Transmission Mode	IEEE802.3x full duplex flow control and backpressure half duplex flow control
Bandwidth	40Gbps
Forwarding Rate	29.76Mpps
MAC Address	8K
PoE Power Budget	200W
Standard Protocol	IEEE802.3i 10 BASE-T IEEE802.3u 100 BASE-TX IEEE802.3ab 1000 BASE-T IEEE802.3z 1000 BASE-LX IEEE802.3x Flow Control IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet IEEE802.3az EEE
Power Supply	AC 100~240V 50/60HZ
Dimensions	440mm × 220mm × 44mm
Working ten-Fature	Working Temperature: 0°C ~ 45°C, Humidity: 10% ~ 90% Storage Temperature: -20°C ~ 70°C, Humidity: 5% ~ 95%
