As offices become more dependent on wired connectivity, planning network outlets requires more attention than simply deciding where cables should enter a room. Workstations, meeting rooms, printers, IP phones, and other devices may have different connection requirements, making outlet placement an important part of structured cabling design.
A Network Wall Plate provides an accessible connection point between installed cabling and compatible network devices. However, the number of ports, mounting position, and associated cabling should be decided before the installation begins.
For network installers, IT managers and commercial building planners, a well-organised outlet plan can reduce unnecessary cabling changes, improve connection identification and make future network modifications easier.
Start with the Number of Connections Required
The first consideration is straightforward: how many network connections will be required at that location?
Installing too few outlets can create limitations when additional devices are introduced. Installing more than necessary across an entire project, on the other hand, may add infrastructure that is unlikely to be used.
The better approach is to assess each location individually.
Consider:
- Number of devices currently required
- Type of devices being connected
- Whether dedicated connections are needed
- Expected future requirements
- Available wall or surface space
- Structured cabling layout behind the outlet
A reception desk, for example, may have different connectivity requirements from a conference room or multi-user workstation.
This is where different port configurations become useful.
When a Single-Port Wall Plate Makes Sense
A single-port configuration provides one network outlet at a specific location.
It can be appropriate where only one permanent network connection is expected, and there is little likelihood of multiple wired devices being required at the same point.
Potential locations may include individual workstations, dedicated network devices, or areas where only one structured cable needs to terminate.
AE Connect includes the AE-FPM-SLX single-port wall plate within its wall-plate range.
Using a single-port configuration can keep the outlet straightforward where additional connections would serve no practical purpose.
However, network planners should still consider future requirements. If a second connection is reasonably likely to be required later, selecting a dual-port configuration during the initial cabling project may be worth considering.
When Two Network Connections Are Required
Dual-port wall plates provide two connection positions within a single wall outlet.
AE Connect’s AE-FPM-DLX is an 86 × 86 mm dual-port wall plate designed for structured cabling installations. It is specified as supporting Cat 6 connectivity and is backward compatible with Cat 5e and Cat 5 cabling standards.
The product also includes a dust shutter and uses a front-disassembly design.
A dual-port configuration can be useful where two separate wired connections need to be available at the same location.
Instead of installing multiple individual wall plates, the network designer can provide both connections through a single organised outlet.
This can be particularly relevant for workspaces where the cabling plan calls for more than one data point.
When Four Ports Provide Better Connection Density
Some locations require several network connections within a relatively small area.
This is where a four-port configuration can become more practical.
AE Connect’s AE-FPM-QUARD provides four connection positions within an 86 × 86 mm Type 86 wall-plate format. The product is designed to allow up to four devices to connect through a single structured cabling point.
A higher-density outlet may be considered for:
- Multi-device work areas
- Conference and meeting spaces
- Training rooms
- Shared office areas
- Locations requiring several structured network points
The objective is not simply to maximise the number of ports on every wall.
Instead, network designers should match outlet density to the actual connection requirements of each area.
Why Port Planning Should Happen Before Installation
Port requirements are easier to accommodate during the network design stage than after the cabling infrastructure has already been completed.
Before choosing the outlet configuration, map the number of expected connections throughout the building.
For each location, determine whether one, two, or four connection points are appropriate.
This planning can help establish:
- Number of horizontal cable runs
- Required outlet positions
- Number of keystone modules
- Patch-panel capacity
- Switch-port requirements
- Labelling structure
- Potential expansion capacity
This demonstrates why a wall plate should not be selected independently from the rest of the structured cabling system.
It is one component within a larger physical network design.
Compatibility with Keystone Modules
The wall plate provides the physical interface, but the connectivity itself depends on the compatible modules installed within the outlet.
Keystone modules are commonly used as modular termination points within structured cabling systems. Their modular format allows suitable jacks to be fitted into compatible wall plates, patch panels, and other network accessories.
AE Connect’s Universal structured LAN portfolio includes both Keystone Modules and Wall Plates, along with patch panels, surface mount boxes and cable management products.
When planning an installation, the wall plate and keystone module should therefore be considered together.
Check:
- Number of module openings
- Cable category
- Module dimensions and compatibility
- UTP or STP requirements
- Outlet configuration
- Installation environment
Matching these components correctly helps create a more consistent termination point.
Matching the Outlet to the Cable Category
A structured network may use Cat 5e, Cat 6, or Cat 6A infrastructure depending on its requirements.
The outlet components need to be selected with the wider cabling system in mind.
AE Connect’s wall-plate range is designed for structured cabling applications, while its compatible Surface Mount Box supports Cat 5e, Cat 6, and Cat 6A cables as well as UTP and STP keystone jacks.
The important point is that the performance of a structured cabling channel depends on the complete connection.
Selecting suitable cable while ignoring connectors, keystone modules, termination quality, or other passive components can undermine the consistency of the installation.
Network planners should therefore treat the wall outlet as part of the complete cabling channel rather than an isolated accessory.
Flush-Mounted or Surface-Mounted Installation?
Not every building allows network outlets to be installed in exactly the same way.
Some projects allow cabling and boxes to be installed within the wall. Others require connectivity to be added to existing spaces where modifying the wall is impractical.
A surface mount box can provide an alternative mounting arrangement for compatible faceplates.
AE Connect’s Surface Mount Box uses an 86 × 86 mm configuration and supports single-, dual-, and four-port faceplates. It is also designed for UTP and STP keystone jacks.
This gives installers greater flexibility when determining how network outlets should be positioned.
The decision between flush and surface mounting should consider the building structure, cable pathway, accessibility, and visual requirements of the installation.
Material and Construction Matter Too
Port count and compatibility are important, but the physical construction of the wall plate should not be ignored.
Network outlets are accessible parts of the cabling infrastructure and may be handled regularly during everyday use.
AE Connect specifies flame-retardant ABS UL94V material for its faceplate range. The product design also incorporates front disassembly.
These characteristics form part of the overall physical design of the outlet.
For larger commercial projects, consistency can also matter. Using compatible outlet components throughout the installation can make the finished infrastructure more uniform and easier to identify.
Dust Protection for Unused Connections
Not every installed port will necessarily be used immediately.
Some network designs intentionally provide additional connection capacity for future requirements. In such situations, unused openings should remain properly managed.
AE Connect’s faceplate specifications include a dust shutter arrangement.
This is a small feature, but it illustrates why outlet design involves more than the number of available ports.
When network infrastructure is expected to remain installed for years, details that support cleaner and more organised connection points become useful.
Creating a Consistent Structured Cabling Layout
Consistency can simplify larger network installations.
Imagine an office where every network outlet uses different layouts, labelling approaches, and connection arrangements. Technicians may spend additional time determining which connection corresponds to which patch-panel port or network device.
A planned structured cabling system should establish a consistent approach to:
- Outlet locations
- Port numbering
- Cable identification
- Keystone positioning
- Patch-panel mapping
- Documentation
The wall outlet becomes the user-facing end of this organised infrastructure.
For a broader understanding of how these termination points work together with centralised cable organisation, AE Connect’s Patch Panel 101: A Beginner’s Guide To Networking Infrastructure explains the role of patch panels within structured network cabling.
Avoid Selecting Every Outlet the Same Way
A common planning mistake is applying the same port configuration throughout an entire project without considering how individual spaces will actually be used.
A better approach is to divide the building into connectivity zones.
For example:
Individual work areas: Determine the actual number of wired endpoints required.
Meeting spaces: Consider how many permanent network connections the room design requires.
Shared areas: Account for multiple users or devices where relevant.
Special-purpose locations: Identify dedicated equipment requiring its own structured network connection.
This approach allows the network designer to choose outlet density according to actual use rather than applying a one-size-fits-all solution.
Planning for Future Changes
Network requirements rarely remain unchanged throughout the life of a building.
Workstations may be reorganised. New devices may be introduced. Rooms may serve different purposes in the future.
Providing reasonable expansion capacity during the original structured cabling installation can make these changes easier to accommodate.
However, future planning does not mean installing the maximum possible number of ports everywhere.
It means considering where additional connections are realistically likely to be required and selecting the appropriate configuration accordingly.
A modular Faceplate combined with compatible keystone connectivity can provide useful flexibility because the outlet forms part of a structured, replaceable connection system.

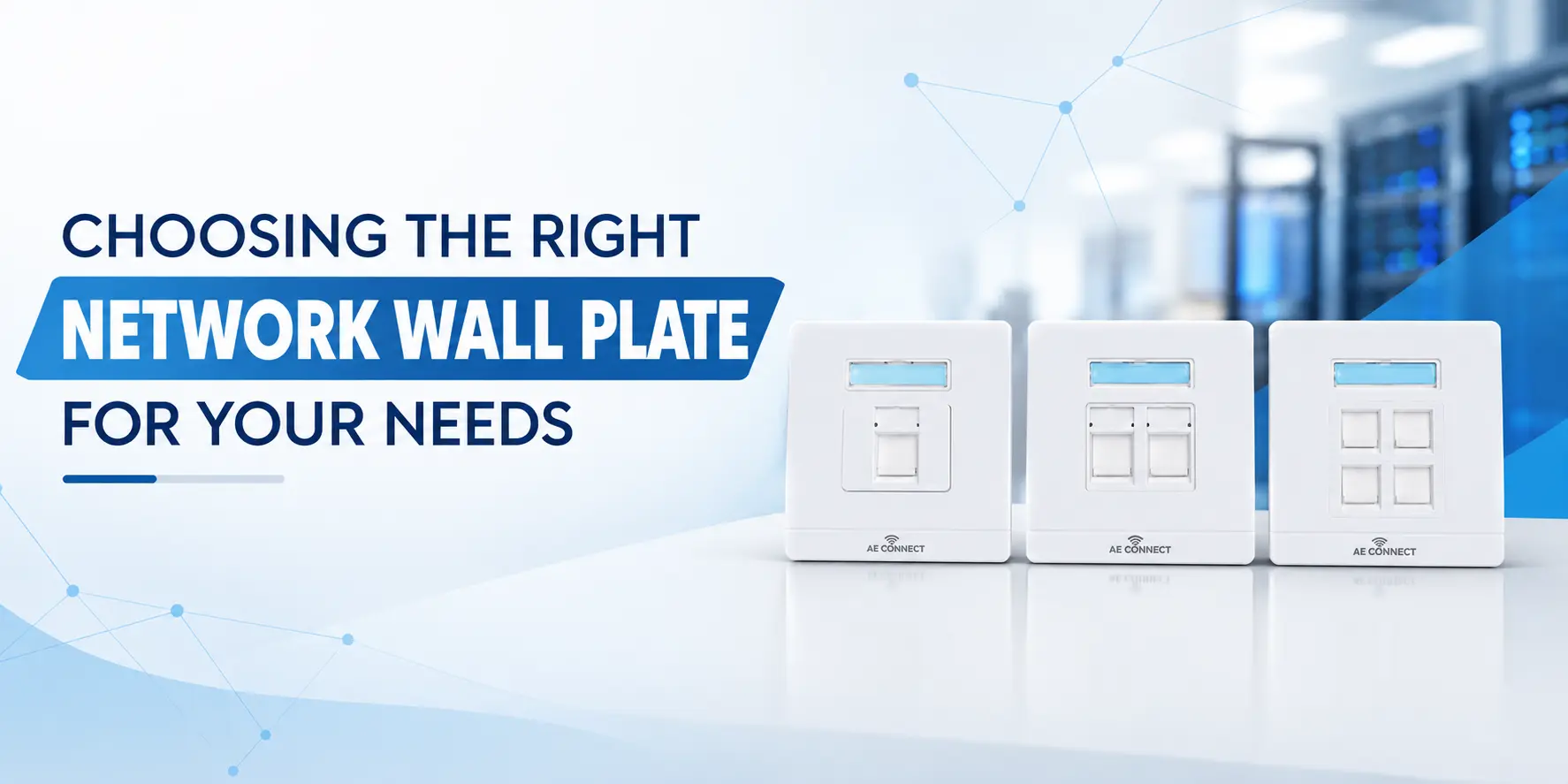

Choosing Between Single, Dual and Four-Port Options
The selection can ultimately be simplified to the requirements of each location.
Choose a single-port configuration when one dedicated connection is sufficient and additional wired connections are unlikely.
Consider a dual-port configuration when two network points need to be available from the same outlet.
A four-port configuration can be more appropriate where several network connections are required within a concentrated area.
Whichever option is selected, confirm compatibility with the keystone modules, cabling category, mounting arrangement, and overall structured cabling design.
Port count should be the starting point—not the only selection criterion.
Conclusion
A network outlet may appear to be a small component, but its configuration affects how easily users and devices can access the structured cabling infrastructure.
Selecting the right Faceplate requires understanding how many connections are needed, which keystone modules will be used, how the outlet will be mounted, and whether future expansion should be accommodated.
AE Connect provides single-, dual- and four-port wall-plate options for different structured cabling requirements, including the AE-FPM-SLX, AE-FPM-DLX and AE-FPM-QUARD configurations.
By planning outlet density alongside cable runs, keystone modules, patch panels and switch capacity, organisations can create a structured cabling system that is cleaner, more consistent and better aligned with the connectivity requirements of each space.
Frequently Asked Questions
What is a network faceplate used for?
A network faceplate provides a structured wall or surface interface for network connections. Compatible keystone modules can be installed within the plate to create accessible data outlets.
How many ports should a network wall plate have?
It depends on the number of wired connections required at that location. Single-port designs suit individual connections, while dual- and four-port options can accommodate higher connection density.
What is the difference between a faceplate and a keystone module?
The faceplate provides the physical mounting interface, while the keystone module provides the network termination and connection point. The two components are commonly used together in structured cabling.
Does AE Connect offer four-port wall plates?
Yes. The AE-FPM-QUARD is an 86 × 86 mm four-port wall plate designed for multiple structured network connections.
Can a faceplate be surface mounted?
Yes, when used with an appropriate mounting solution. AE Connect’s Surface Mount Box is compatible with single, dual and four-port faceplates.
Why should outlet requirements be planned before cabling installation?
Early planning helps determine cable quantities, outlet positions, keystone requirements, patch-panel capacity and switch ports. It can also reduce the need for unnecessary changes after installation.
