Why Rodent-Proof Armoured Cable is the Standard for Perimeter Security Systems

For any B2B security infrastructure project in India, the “perimeter” is the first and most vulnerable line of defence. You can invest in the costliest AI-enabled 4K cameras and thermal sensors, but if the underlying data link fails, the entire system is just expensive wall decor. In industrial zones, warehouses, and remote project sites, the biggest threat to this link isn’t a hacker: it’s a rat. This is precisely why Armoured Cable has transitioned from an “optional upgrade” to a non-negotiable standard for professional security installations.

The Rodent Menace: Why Standard Cables Fail in Indian Sites

Standard PVC or HDPE cables are like a “midnight snack” for rodents. Rats and squirrels have teeth that never stop growing; they gnaw on cables to trim them down. In the Indian context, where open cable trays and underground trenches are common, a single bite through a standard Cat 6 jacket leads to:

• Intermittent Signal Loss: Ghosting or “No Signal” errors in video feeds that make real-time monitoring impossible.
• Moisture Ingress: Once the jacket is breached, Indian humidity enters the core, leading to rapid copper oxidation.
• System-Wide Failures: Exposed conductors can cause electrical shorts, potentially frying your NVRs or PoE switches.

What Makes a Cable Truly Rodent-Proof?

Not all cables labelled “outdoor” can withstand a rodent attack. A true Armoured Cable uses a physical metallic barrier that pests simply cannot penetrate.

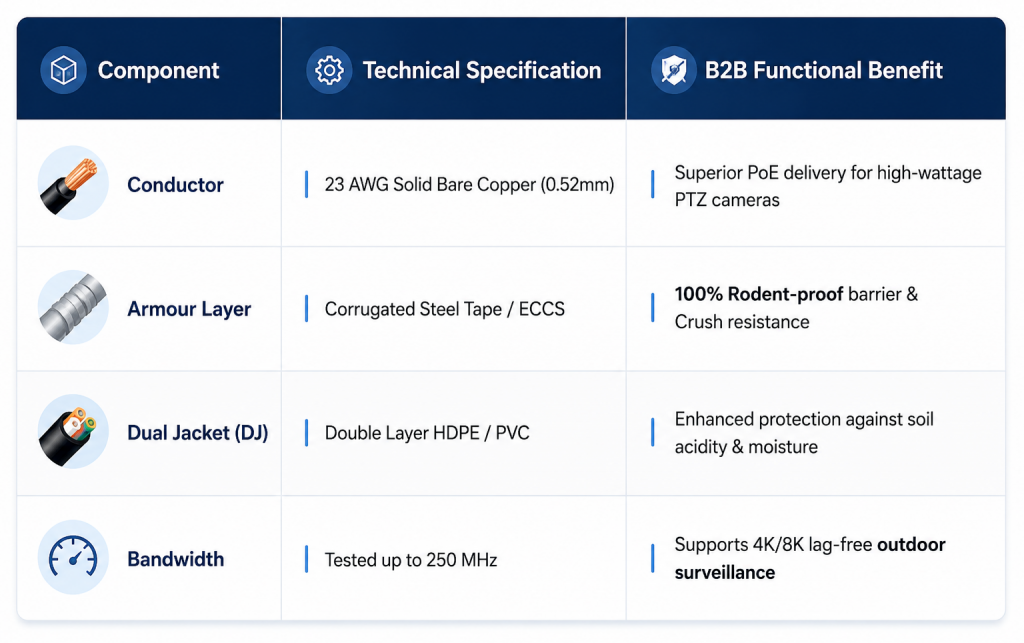

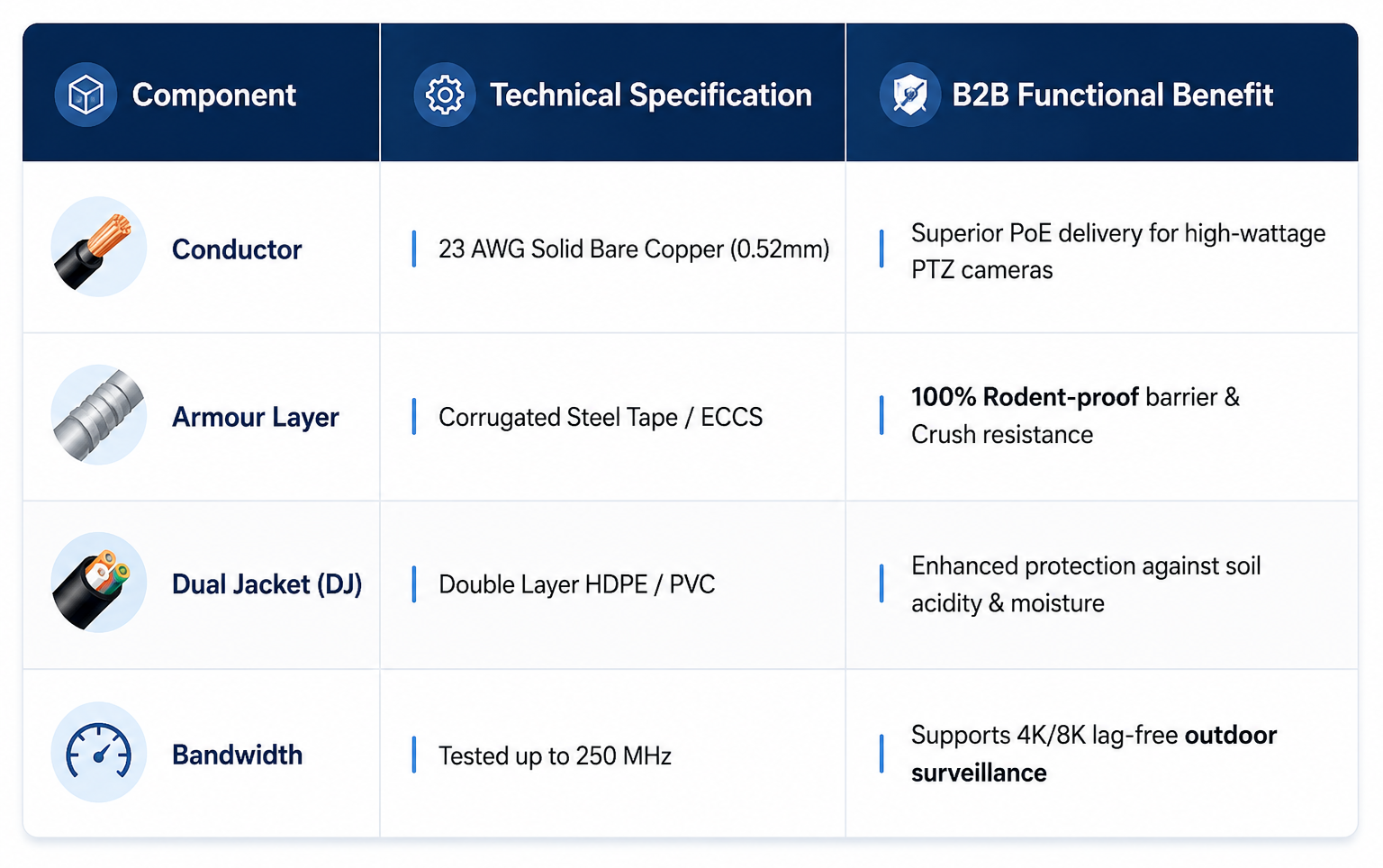

Technical Breakdown: AE-C6-BCEB-UTP-DJ-BLACK

Let’s look at the anatomy of a high-grade security cable like the AE-C6-BCEB-UTP-DJ-BLACK from AE Connect. This specific model is designed for the mechanical rigours of industrial networking.

The inclusion of ECCS (Electrolytic Chrome Coated Steel) creates a “metal tube” around the internal pairs. When a rodent tries to chew through, it hits steel: effectively ending the threat to your data infrastructure.

5 Critical Reasons to Mandate Armoured Cable for Your Project

When planning a large-scale rollout, the initial purchase price is only part of the story. You must consider the Total Cost of Ownership (TCO).

1. Direct Burial Capability: You don’t always need expensive conduits. This Direct Burial Cable can be laid directly in the soil, significantly reducing your civil work and labour costs.
2. High Tensile Strength: Perimeter runs are often long (200m+). These cables withstand the heavy pulling force during installation without stretching the internal copper pairs.
3. Crush Resistance: In industrial sites with heavy vehicle movement, cables often face accidental pressure. The steel armour ensures the internal 23 AWG geometry remains intact.
4. EMI Shielding Benefits: While it’s a UTP (Unshielded Twisted Pair) design, the metallic armour provides a grounded layer of protection against EMI from nearby power lines.
5. Long-term Reliability: Replacing a failed cable 500 metres along a boundary wall is a logistical nightmare. Using a high-speed, durable Cat 6 armoured cable for outdoor security ensures you only install it once.

Choosing the Professional Choice: AE Connect Solutions

For B2B buyers looking for reliability, the Cat 6 Armoured Cable (DJ-Black) is a standout. It meets strict TIA/EIA-568-B standards, ensuring it integrates seamlessly with any professional networking hardware.

Key Advantages:

• UV Resistance: The black HDPE outer jacket won’t crack or degrade under the harsh Indian sun.
• PoE+ Compatible: Ideal for powering modern security peripherals without voltage drops.
• Toughness: Specifically built to handle the “three-stack problem” of moisture, heat, and physical stress.

Installation Best Practices for Site Engineers

• Proper Earthing: Always ground the metal armour layer. This prevents static buildup and offers an extra layer of surge protection for your cameras.
• Avoid Over-Bending: Maintain a bending radius of at least 12 times the cable diameter. Kinking the steel tape can damage the internal conductors.
• Glanding is Mandatory: Use industrial brass glands at all entry points to maintain the IP67 integrity of your junction boxes.

Conclusion: Don’t Compromise on the Foundation

Security is only as strong as its weakest link. In perimeter surveillance, that link is usually the cable. By investing in Armoured Cable, you eliminate the most common cause of outdoor network failure. It’s a one-time investment that protects your high-end equipment and ensures your site remains secure 24/7.

FAQ: Professional Insights on Armoured Cable

1. Is Armoured Cable required for IP cameras installed on poles?

Yes. While the pole provides height, the cable run usually goes through the ground or along a wall to reach the pole. Rodents and environmental wear are most active at these transition points.

2. Does the steel armour layer cause signal interference or latency in the Cat 6 link?

No. The internal 23 AWG twisted pairs are electrically isolated from the steel armour, ensuring zero impact on signal speed or latency. In fact, the ECCS layer can act as an additional shield against EMI, maintaining consistent gigabit speeds even in high-interference industrial zones.

3. Why is the “Double Jacket” (DJ) important?

The double jacket (DJ) serves as a secondary moisture barrier. For Indian sites prone to heavy monsoons or waterlogging, this dual-layer construction ensures that even if the outer jacket is scuffed during installation, the inner layer keeps the core dry and the steel armour corrosion-free.

4. How can procurement teams source bulk AE Connect armoured cables for large-scale projects?

For customised project quotes, technical consultations, or to download datasheets for the AE-C6-BCEB-UTP-DJ-BLACK, visit the official AE Connect portal or contact our regional distribution partners across India.
