AE Connect
AE-FPSM
AE-FPSM

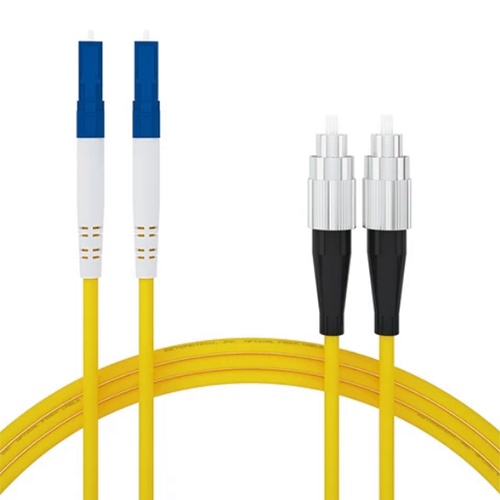

Patch Cord

DATASHEET

Reliable Connections for High-Speed Networks!

AE Connect fiber patch cord is designed to provide superior connections for a variety of networking applications. Its high quality ensures reliable and efficient data transmission, making it ideal for building robust and scalable network infrastructures.

  • Connectors: SC-SC, LC-LC, FC-FC, ST-ST, SC-LC, SC-FC, SC-ST, LC-ST
  • Length: 3 Mtr, 5 Mtr (Customized Lengths Available)
  • Channels: Simplex / Duplex
  • Precision: Single Mode
  • High-Quality Zirconia Ferrule
  • PC Radius Ferrule Tip
  • 100% Insertion Loss Tested
  • UL-V0 Flammability Rating on Polymer Materials
Get Quote
Share:

Specification

Connector TypeSC/LC/ST/FC/MTRJ
Optical FiberSingle- ModeMulti-Mode
Cable Type LSZH
3.0mm / 2.0mm
Cable ColorSingle Mode - Yellow & Multi-Mode - Orange / Aqua
Length3m,5m Other Length on request
Optical SpecificationInsertion LossTypical:≤0.2dBm Max.
0.3dB MTRJ: Max. 0.5dB		 Typical:≤0.2dBm Max. 0.3dB
MTRJ: Max. 0.5dB
Return LossPC:≤45dB, UPC≤50
dB,APC≤60dB		≤25dB
MechanicalConnector FerruleCeramic
Specification Repeatability ≤ 0.2dB 200 times mating cycles
Working Temprature-10℃- +70 ℃
Storage Temprature-20℃- +70 ℃

Documentation

Datasheet
Certificate
Test Report
