90W PoE Injector |AE Connect

Overview

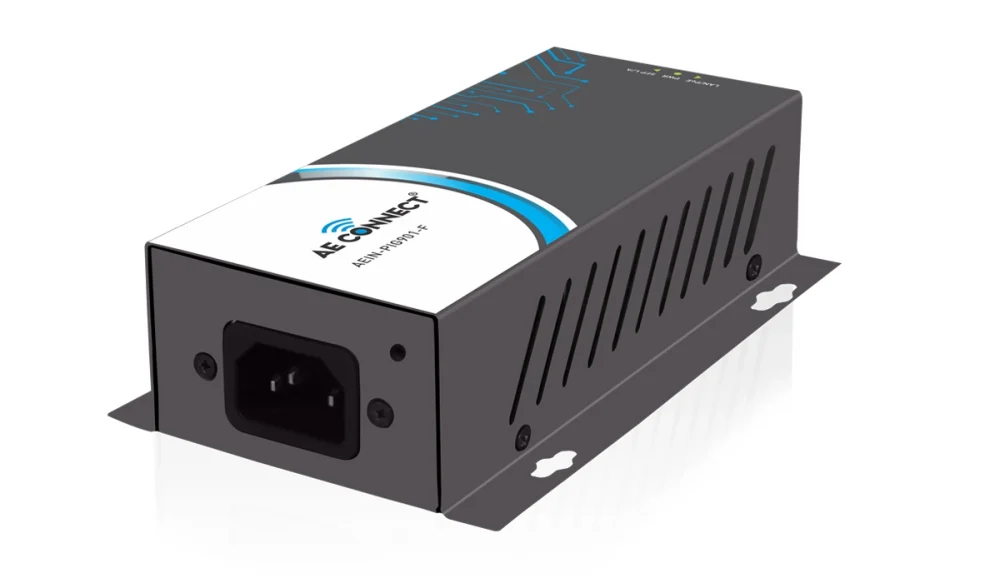

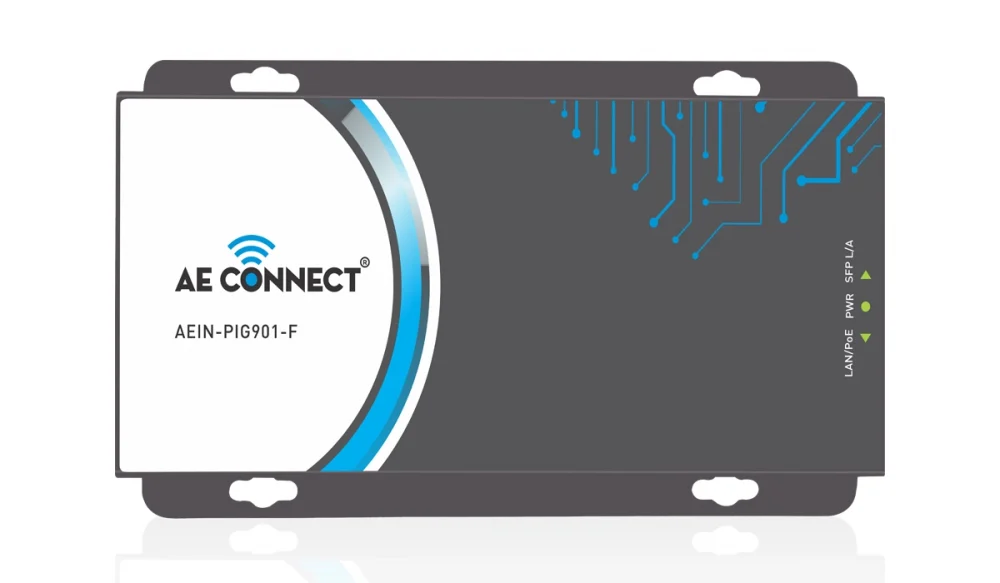

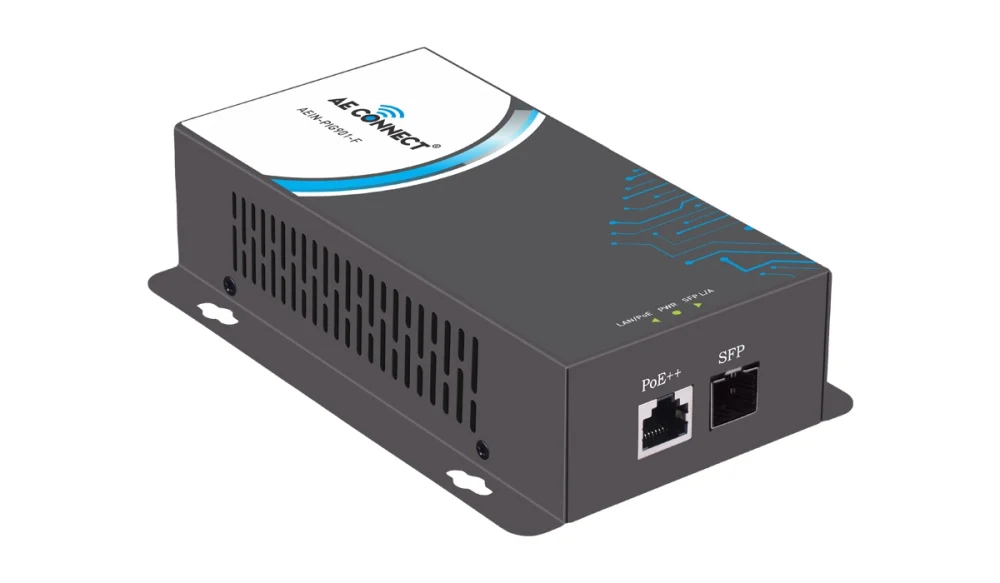

Featuring a 90-watt PoE injector, designed to power PoE-compliant devices such as IEEE 802.11ax access points, Pan-Tilt-Zoom (PTZ) and dome cameras, IP videophones, thin clients and other high-power Ethernet end terminals requiring up to 90W/60W of power. The AEIN-PIG901 is an IEEE 802.3BT standard-compliant PoE++ injector and is also backward compatible and safe to use with any IEEE 802.3AF/AT terminal such as VoIP phones, IP cameras, and wireless LAN access points.

Model : AEIN-PIG901
PoE Standard: AF/AT/BT PoE standard with backward compatibility.
RJ 45 PoE+ Port: 2x10/100/1000M
Plug-and-play installation
Surge Protection: 5 KV
Total Power Budget: 90 W (Over 4 pairs)
Range: 100 Meters
Dimension: 182 x 76 x 44 mm
Warranty: 3 years

In case you do not require a PoE injector with more output power, you can opt for our low-power injector -30W PoE+ Injector.

Datasheet

Got any Questions?

Inquire Now

Product	Gigabit LTPoE++ Injector
Model	AEIN-PIG901
Injector Type	Active PoE injector with PSE controller
Standard & Protocol	Compatible with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af , IEEE802.3at, IEEE802.3bt Standard
Power Support	15W/30W/90W (IEEE802.3af/at/bt)
Transmission range	100M
Indication	PWR, POE
Power Drive	4Pair
Power Pins	12,45 (+) & 36,78(-)
Power Supply	Bult In AC-DC power Supply
Inputs	100-265VAC (Universal AC Input)
Output	52V/1.7A
Operation Temperature	0℃~55℃
Storage Temperature	-40℃~85℃
Operating Humidity	10%~90% (noncondensing)
Storage Humidity	5%~90% (noncondensing)
Dimension	155 x 60 x 32 mm
Certification	CE\FCC\ROHS (Under Testing)
Enclosure	Metal Case
Ports	1000Mbps Data port 1000Mbps Data + PoE Power port
Protections	5kV Surge Protections on PoE Ports 5kV Surge Protections on Input Power Supply Input short Circuit protections Output short Circuit protections Overload protections Over temperature protections

Product

Gigabit LTPoE++ Injector

Model

AEIN-PIG901

Injector Type

Active PoE injector with PSE controller

Standard & Protocol

Compatible with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af , IEEE802.3at, IEEE802.3bt Standard

Power Support

15W/30W/90W (IEEE802.3af/at/bt)

Transmission range

100M

Indication

PWR, POE

Power Drive

4Pair

Power Pins

12,45 (+) & 36,78(-)

Power Supply

Bult In AC-DC power Supply

Inputs

100-265VAC (Universal AC Input)

Output

52V/1.7A

Operation Temperature

0℃~55℃

Storage Temperature

-40℃~85℃

Operating Humidity

10%~90% (noncondensing)

Storage Humidity

5%~90% (noncondensing)

Dimension

155 x 60 x 32 mm

Certification

CE\FCC\ROHS (Under Testing)

Enclosure

Metal Case

Ports

1000Mbps Data port
1000Mbps Data + PoE Power port

Protections

5kV Surge Protections on PoE Ports
5kV Surge Protections on Input Power Supply
Input short Circuit protections
Output short Circuit protections
Overload protections
Over temperature protections
