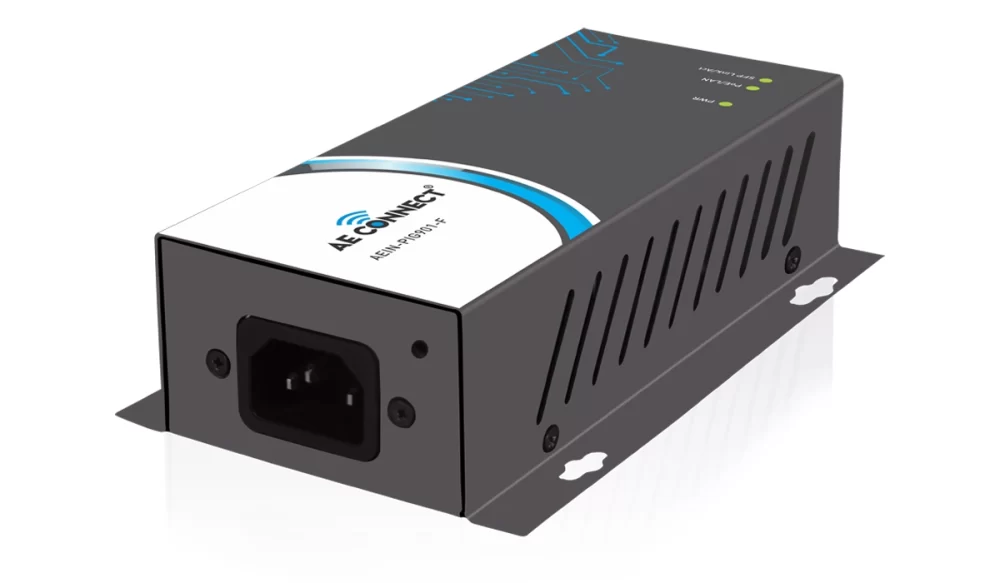

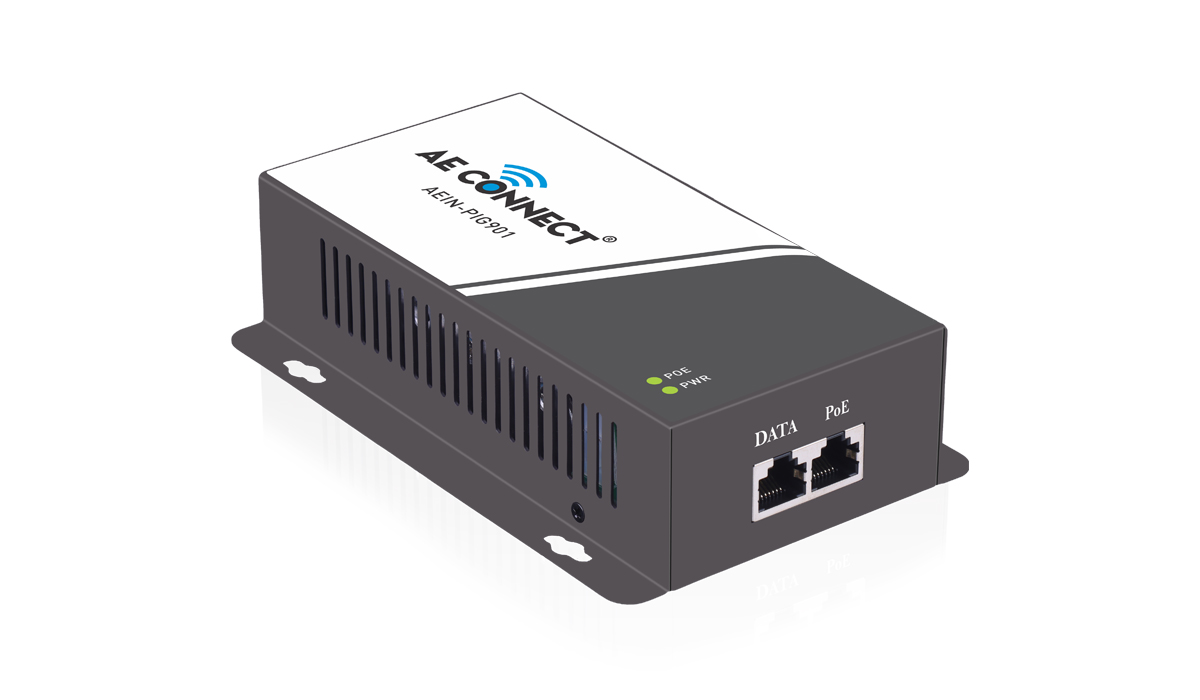

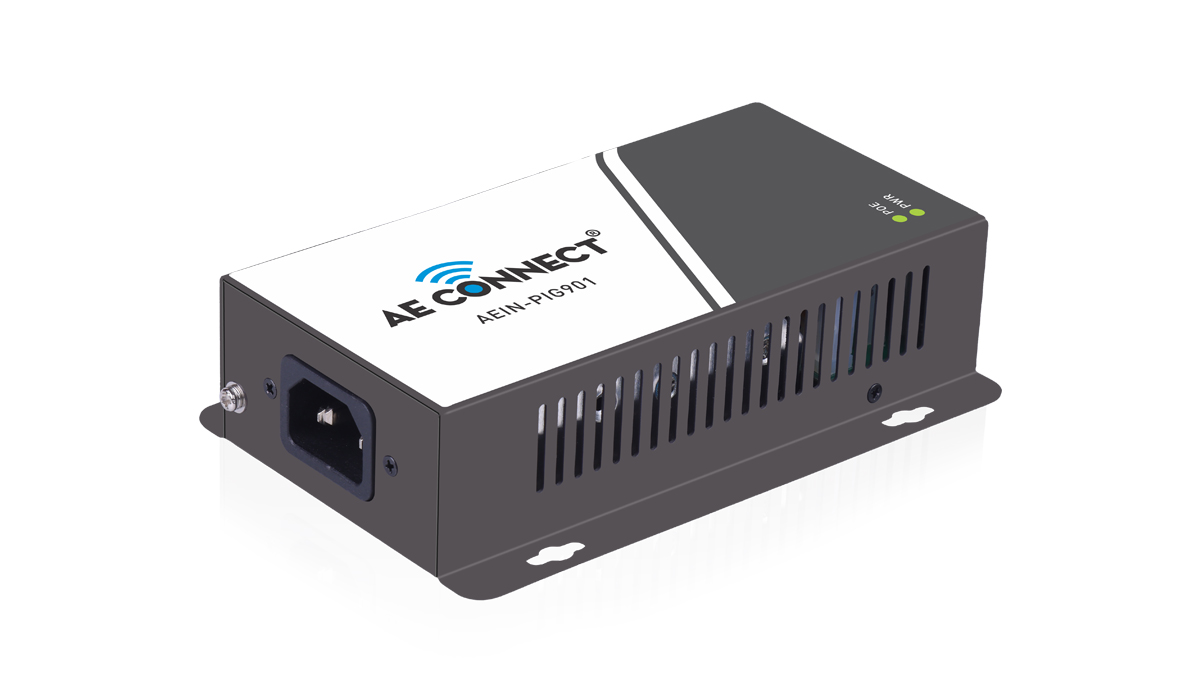

90 Watt PoE++ Injector AEIN-PIG901

AEIN-PIG901

90 Watt PoE++ Injector

Featuring a 90-watt Gigabit PoE++ injector, designed to power PoE-compliant devices such as IEEE 802.11ax access points, Pan-Tilt-Zoom (PTZ) and dome cameras, IP videophones, thin clients and other high-power Ethernet end terminals requiring up to 90W/60W of power. The AEIN-PIG901 is an IEEE802.3BT standard-compliant PoE++ injector and is also backward compatible and safe to use with any IEEE 802.3AF/AT terminal such as VoIP phones, IP cameras, and wireless LAN access points.

In case you do not require a PoE injector with more output power, you can opt for our low-power injector - 30W PoE+ Injector.

Specification

Product CodeAEIN-PIG901
ProductGigabit PoE++ Injector
Injector TypeActive PoE+ injector with PSE controller
Standard & ProtocolCompatible with IEEE802.3, IEEE802.3u, IEEE802.3ab
Power Support15W/30W/60W/90W (IEEE802.3af, IEEE802.3at, IEEE802.3bt)
Transmission Range100Mtr
Ports 1. 1000Mbps Data port
2. 1000Mbps Data + PoE Power port
IndicationPWR, PoE
Power SupplyBult In AC-DC power Supply
Inputs100-265VAC (Universal AC Input)
Output52V/2A
FeaturesSupport MidSpan and Legacy mode
Power Drive4Pair
Power Pins12,45 (+) & 36,78(-)
Protections 5kV Surge Protections on PoE+ Ports
5kV Surge Protections on Input Power Supply
Input short Circuit protections
Output short Circuit protections
Overload protections
Over temperature protections
Operation Temperature0℃~55℃
Storage Temperature-40℃~85℃
Operating Humidity10%~90% (non condensing)
Storage Humidity5%~90% (non condensing)
Dimension142 x 96 x 40 mm
CertificationCE\ROHS
EnclosureMetal case

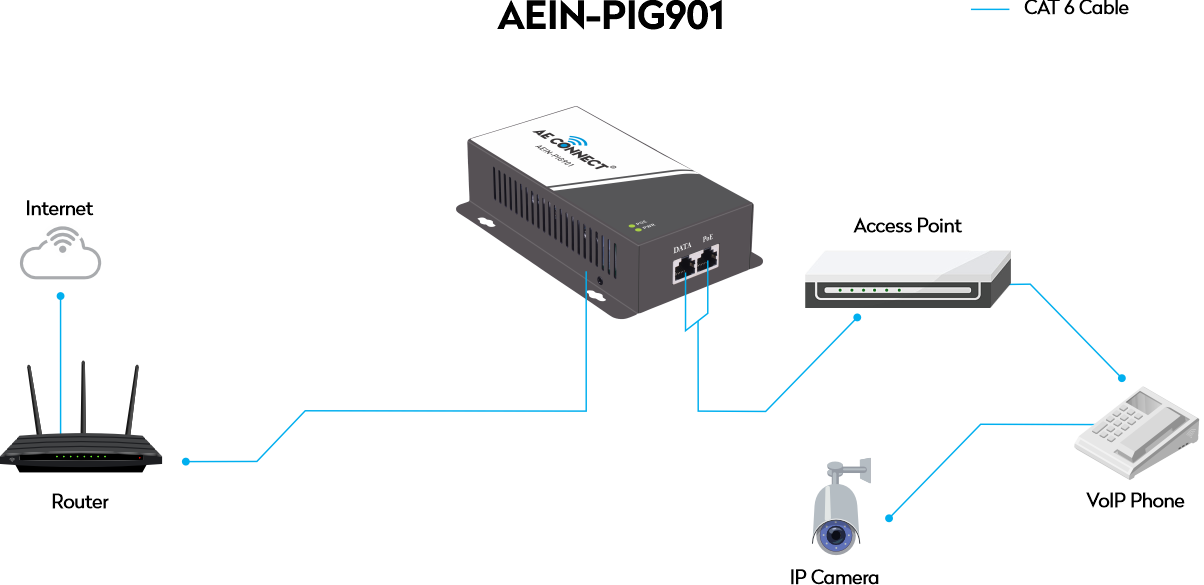

Application Diagram
