Specification

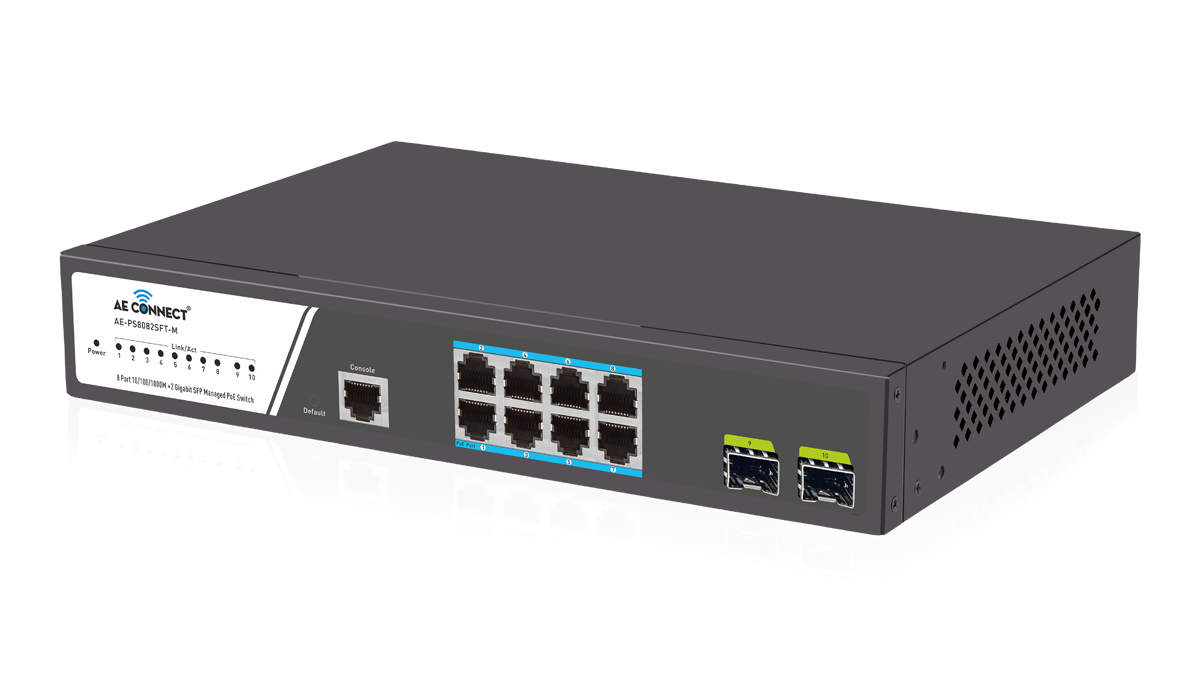

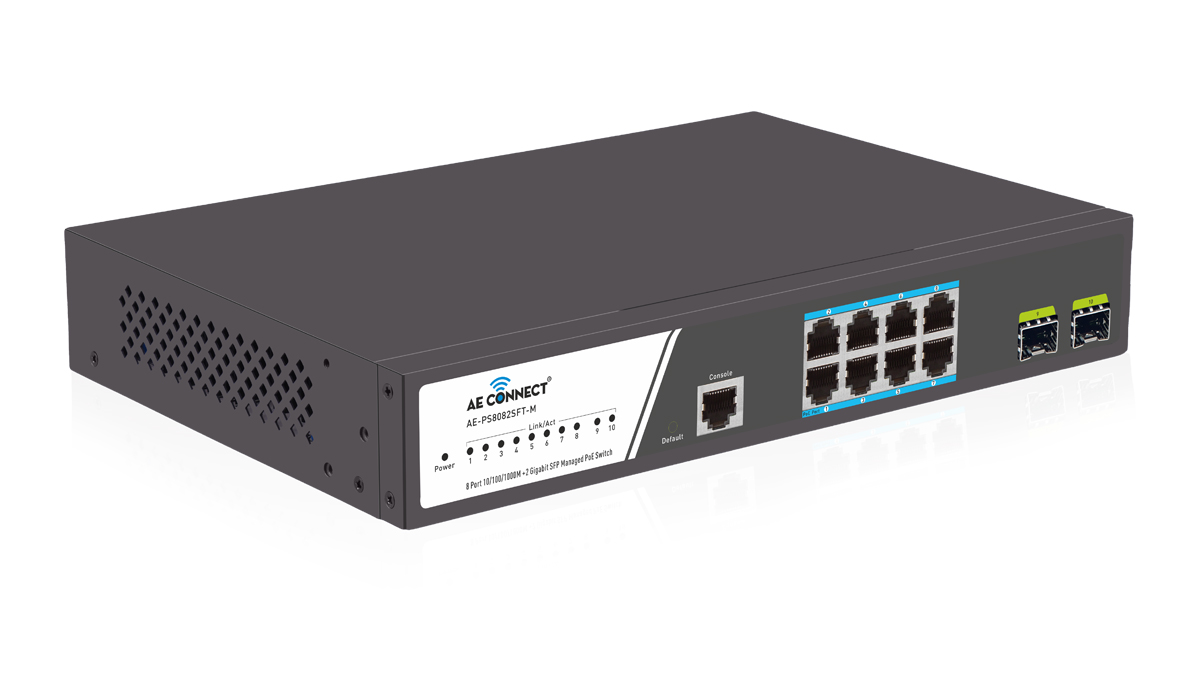

| Model | AE-PS8082SFT-M | |
| Ports description | Port | 1-8 port:10/100/1000Mbps |
| Uplink port | 2*SFP Slots | |
| Performance specification | Backplane Bandwidth | 20Gbps |
| Packet forwarding rate | 16Mpps | |
| MAC address | 8k | |
| Jumbo Frame | 9216 Bytes | |
| Processing types | Store and forward | |
| Power Supply | AC 100~240V, 50/60Hz | |
| LED indicators | PWR/ Link/Act Power (power indicator), Link/Act (link/activity indicator) | |
| Transmission mode | IEEE802.3x Full-duplex and Backpressure half-duplex | |
| Default Recovery | Hold on Default button for 10 seconds to recovery factory setting | |
| Network standard | IEEE802.3i 10 BASE-T Network standard IEEE802.3u 100 BASE-TX IEEE802.3ab 1000 BASE-T IEEE802.3z 1000 BASE-T Fiber IEEE802.3x Flow Control IEEE802.1p LAN layer 2 QoS/CoS protocol for traffic priority (multicast filtering) IEEE802.1q VLAN IEEE802.1d STP Spanning tree IEEE802.1w RSTP Spanning tree | |
| Dimensions | 282mm(L) * 178mm(W) * 44mm(H) | |
| Cable Requirement | UTP cat 5 or above | |
| Environment specification | Operating temperature: -10 ~50 Operating humidity: 10 ~90 Storage temperature: -20 ~70 Storage humidity: 5 ~95 | |
| Routing | Support static routing Support ARP proxy | |
| Loop protection | Support ERPS Ring protection Support 50ms healing looping Support BPDU protection, root protection and loopback protection | |
| Spanning tree (STP) | Support STP (IEEE 802.1d), Support RSTP (IEEE 802.1w) Support MSTP (IEEE 802.1s) Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering | |
| PoE management | Support PoE watchdog Support PoE time setting Support PoE port management | |
| DHCP | Support DHCP server Support DHCP relay Support DHCP Snooping Support Option, Option82 | |
| MAC address table | Follow IEEE 802.1d standard Support MAC address automatic learning and aging Support static, dynamic, filter address table | |
| VLAN | Support 4K VLAN Support 802.1Q VLAN, Mac VLAN, protocol VLAN, Private VLAN Support Guest VLAN, Voice VLAN Support GVRP protocol Support 1: 1 and N: 1 VLAN mapping function | |
| Security feature | Based on user grading management and password protection Support for port numbers, IP addresses, MAC addresses limit users access Support HTTPS, SSL V3, TLS V1, SSH V1 / V2 Support IP-MAC-Port-VLAN quarter binding Support ARP protection, IP source protection, DOS protection Support DHCP Snooping, DHCP Attack Protection Support 802.1x certification, AAA Support RADIUS Support TACACS+ Support port security, port isolation Support CPU protection | |
| Access Control (ACL) | Supports L2 (Layer 2) ~ L4 (Layer 4) package filter function Provide source / destination MAC address, source / destination IP address, TCP / UDP protocol, source / destination port number protocol, and VLAN package filtering function Support port mirror, port redirection, flow rate, QoS marking Support IPv4, IPv6, ACL | |
| Service quality (QoS) | Support 8 port queuing Support port priority, 802.1p priority, DSCP priority Support WRR, strict priority scheduling algorithm | |
| Multicast | Support IGMP V1 / V2 / V3 Snooping Support MLD V1 / V2 Snooping Support fast leaving mechanism Support multicast VLAN Support multicast filtering, packet statistics, unknown multicast discard | |
| Management and maintenance | Support Web network management (HTTP, HTTPS, SSL V3, TLS V1) Support CLI (Telnet, SSH V1 / V2, local serial port) Support SNMP V1 / V2 / V3, compatible public MIBS Support LLDP, RMON Support CPU monitoring, memory monitoring Support system log, grading warning Support ping, trace route detection, UDLD Support electrical port test, optical module information detection Support HTTP, TFTP software upgrade, configuration management | |
