Specification

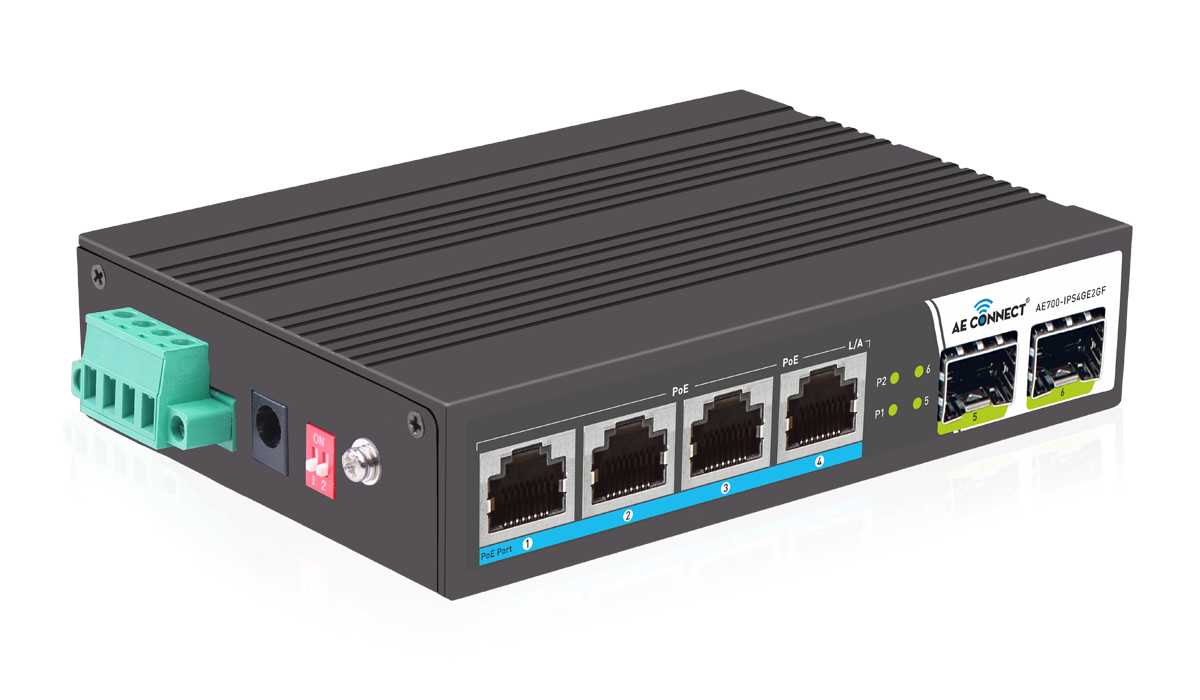

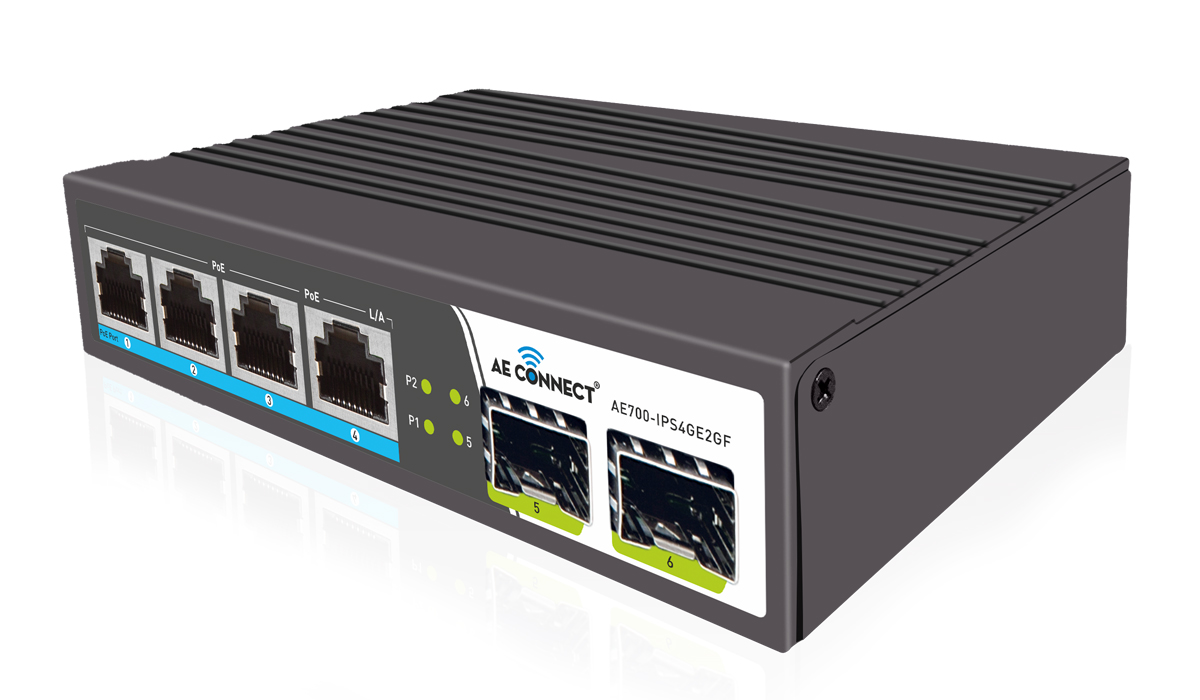

| Model | AE700-IPS4GE2GF |
| Port description | 4 x electrical port (PoE+) 1000BASE-T 2 x optical port (SFP) 1000BASE-X |
| Optical port characteristics | Interface type: SFP Speed: 1000Mbps Wavelength: Single-mode fiber: 1310nm/1550nm Multimode fiber: 850nm Core standard: Single mode: 8.3μm, 8.7μm, 9μm, 10μm Multimode 50μm, 62.5μm, 100μm |
| Electrical port characteristics | Interface type: PoE+ Rate: 10/100/1000Mbps adaptive Duplex mode: full/half duplex Connection mode: MDI/MDIX automatic flip |
| Protocol standard | IEEE802.3i 10 BASE-T IEEE802.3u 100 BASE-TX IEEE802.3ab 1000 BASE-T IEEE802.3z 1000 BASE-LX IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet IEEE802.3x Flow Control IEEE802.3az EEE |
| Exchange performance | Backplane bandwidth: 12Gbps Packet forwarding rate: 8.92Mpps MAC address: 8K Packet buffer: 2Mbit Forwarding mode: Store and forward |
| Power supply | Input power: DC 48~56V (6PIN Phoenix terminal), 1*DC interface Power consumption: full load <6W (not including PoE) Dual power supply: support Redundant protection: support Reverse connection protection: support |
| Mechanical structure | Shell material: metal Protection level: IP40 Size: 145*103*44mm (Excluding connector protruding part and DIN rail assembly size) Weight: 0.85Kg Installation method: DIN Rail installation |
| Surroundings | Working temperature: -40℃~75℃ Storage temperature: -40℃~85℃ Relative humidity: 5%~95% RH (non-condensing) |
| Industry Standard | EMI: CE/FCC EMS: IEC61000-4-2 (ESD-static) IEC61000-4-3 (RS-radiation anti-interference) IEC61000-4-4 (EFT-fast burst) IEC61000-4-5 (Surge-lightning protection) IEC61000-4-6 (CS-conducted anti-interference) Machinery: IEC60068-2-6 (vibration) IEC60068-2-27 (Shock) IEC60068-2-32 (free fall) Industry: IEC61000-6-2 Railway: EN50155, EN50121-4 Transportation: NEMA TS-2 |
| Warranty | Warranty period: 3 years |
