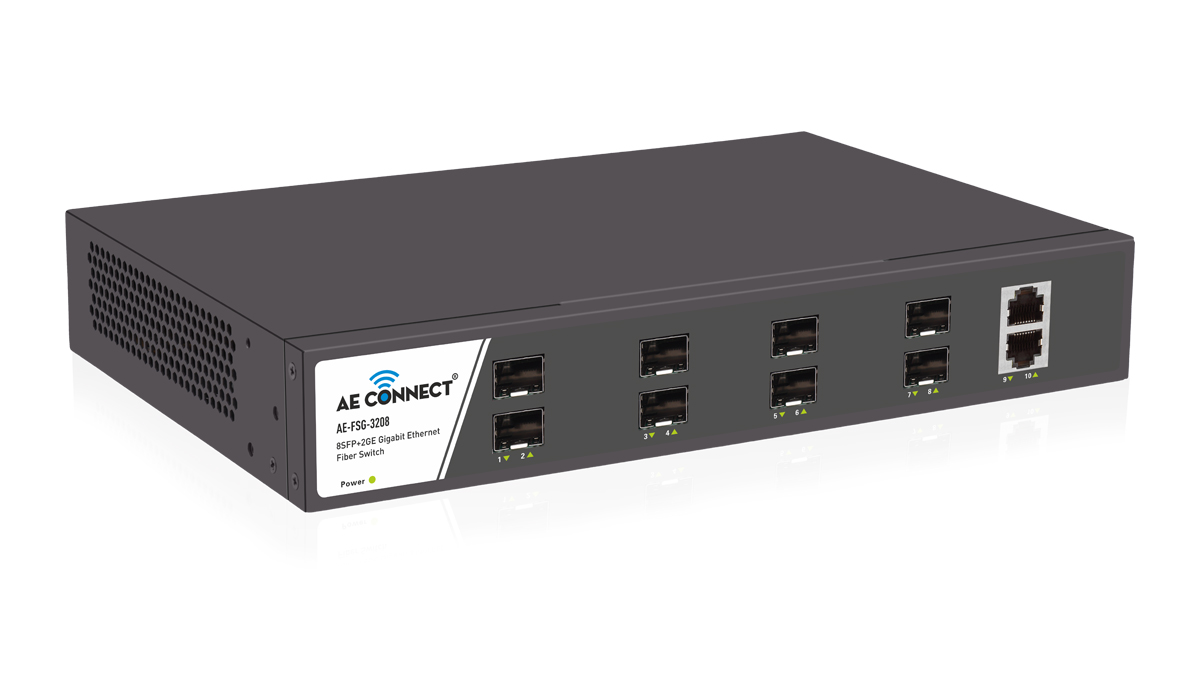

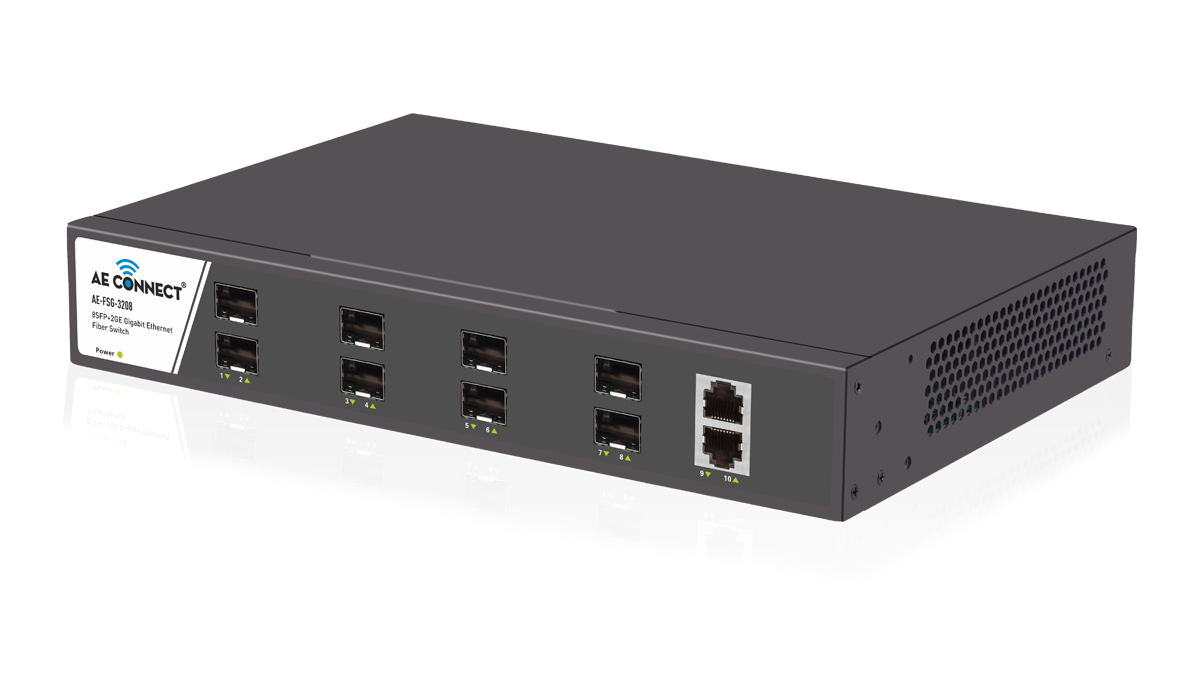

10 Port Fiber Switch AE-FSG-3208

AE-FSG-3208

10 Port Unmanaged Fiber Switch

DATASHEET

The 10 Port Fiber Switch AE-FSG-3208 is a high-performance Gigabit Fiber Switch featuring 210/100/1000M UTP ports and 81000M SFP slots. Designed for flexibility, it supports various 1000M SFP modules such as 1000Base-T, 1000Base-SX, and 1000Base-LX to meet diverse networking needs. This 10 Port Fiber Switch is known for its stable performance, excellent build quality, and cost-effe10 Port Fiber Switch ctive pricing—making it an ideal choice for reliable and scalable fiber networking solutions.

Get Quote

Specification

Model	AE-FSG-3208
SFP Ports	8*1000M SFP Fiber
Downlink ports	2*10/100 /1000M RJ45 ports
Bandwidth	20Gbps
Packet Forwarding Rate	1 4 . 8 8MBPS
MAC address	8K
Port lightning protection	6KV
LED indicator	PWR, Link / Act
Transmission mode	IEEE802.3 full duplex flow control and backpressure half duplex flow control
Standard protocol	IEEE802.3i 10 BASE-TX IEEE802.3u 100 BASE-TX IEEE802.3ab 1000 BASE-T IEEE802.3z 1000 BASE-LX IEEE802.3x Flow Control IEEE802.3AZ EEE
Power supply	AC 100~240V 50/60HZ
Size	270MM × 181MM × 44MM
Working temperature	Working Temperature: 0 45， Humidity: 10% ~ 90% Storage Temperature: - 20 70 , Humidity: 5% ~ 95%
