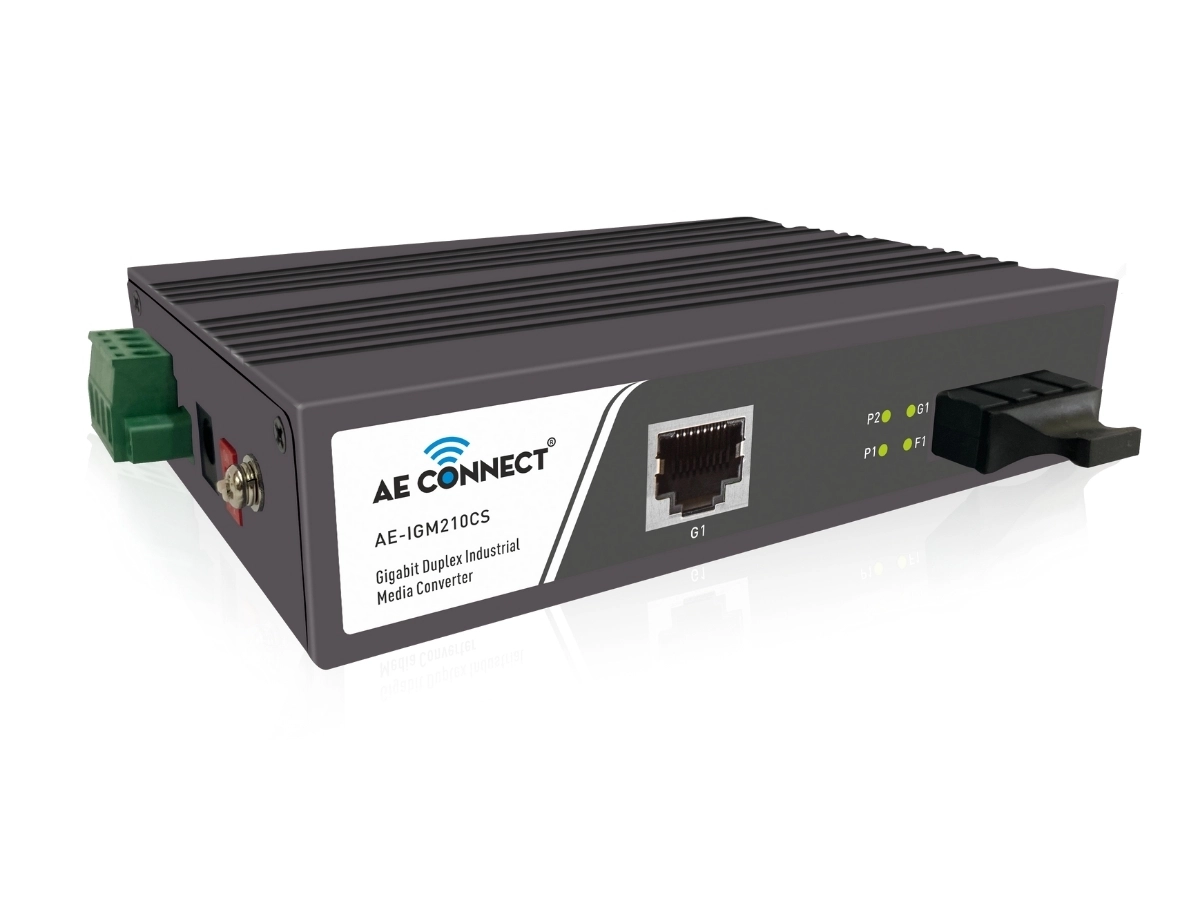

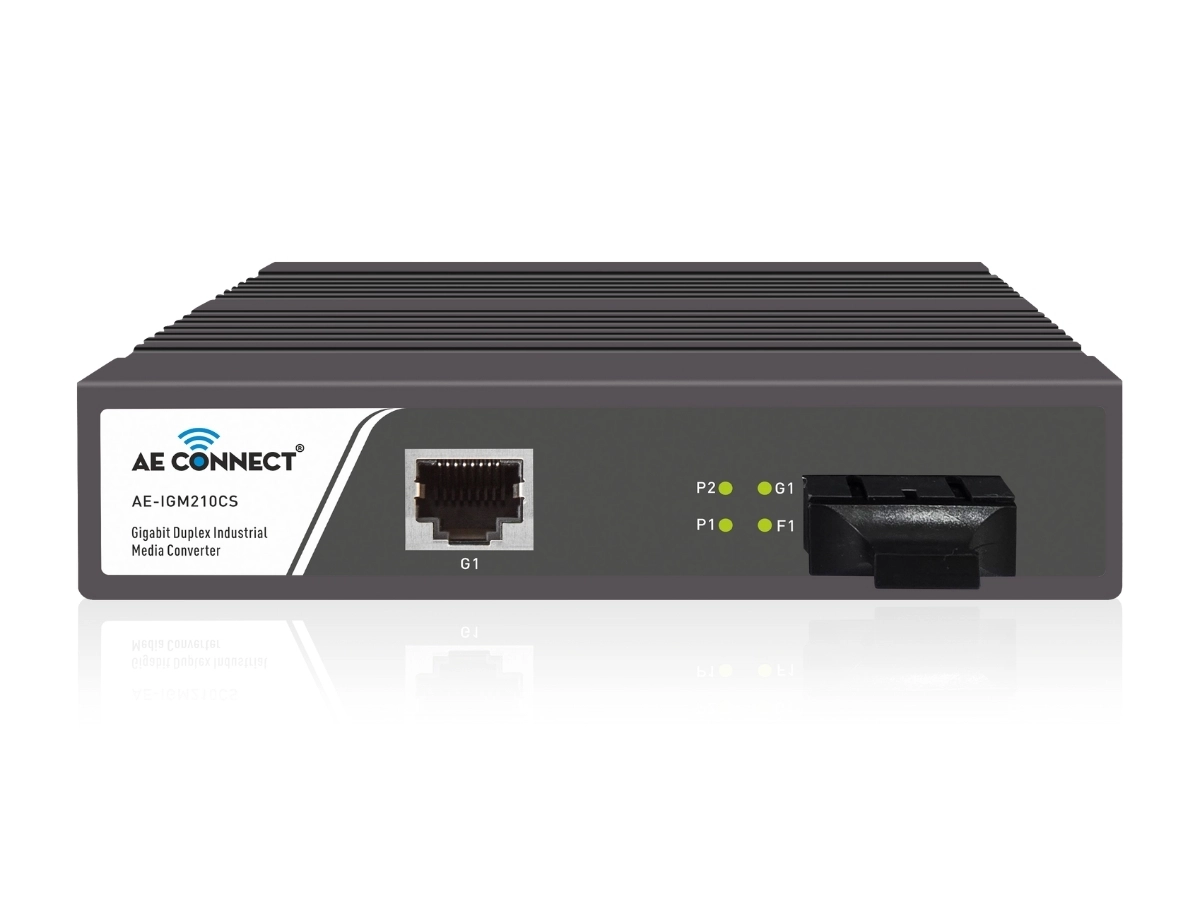

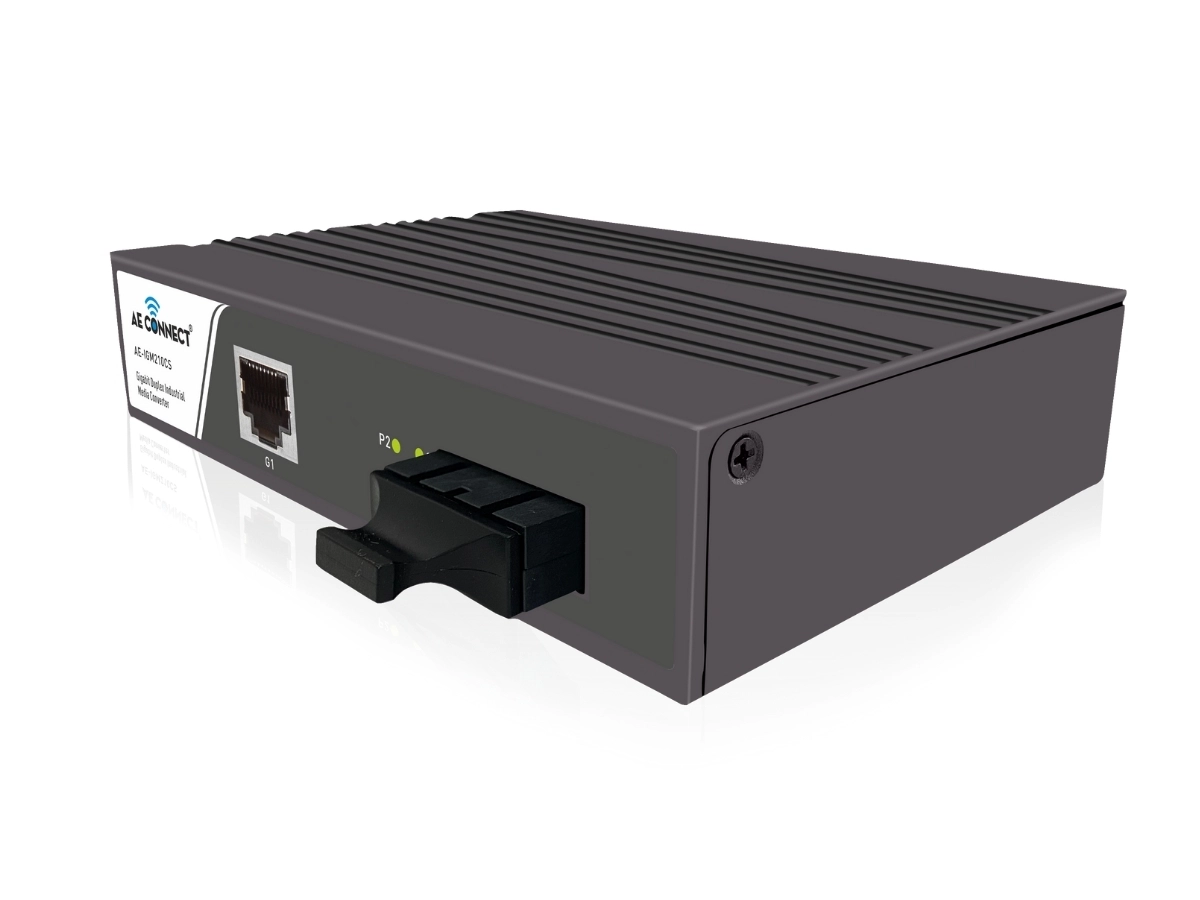

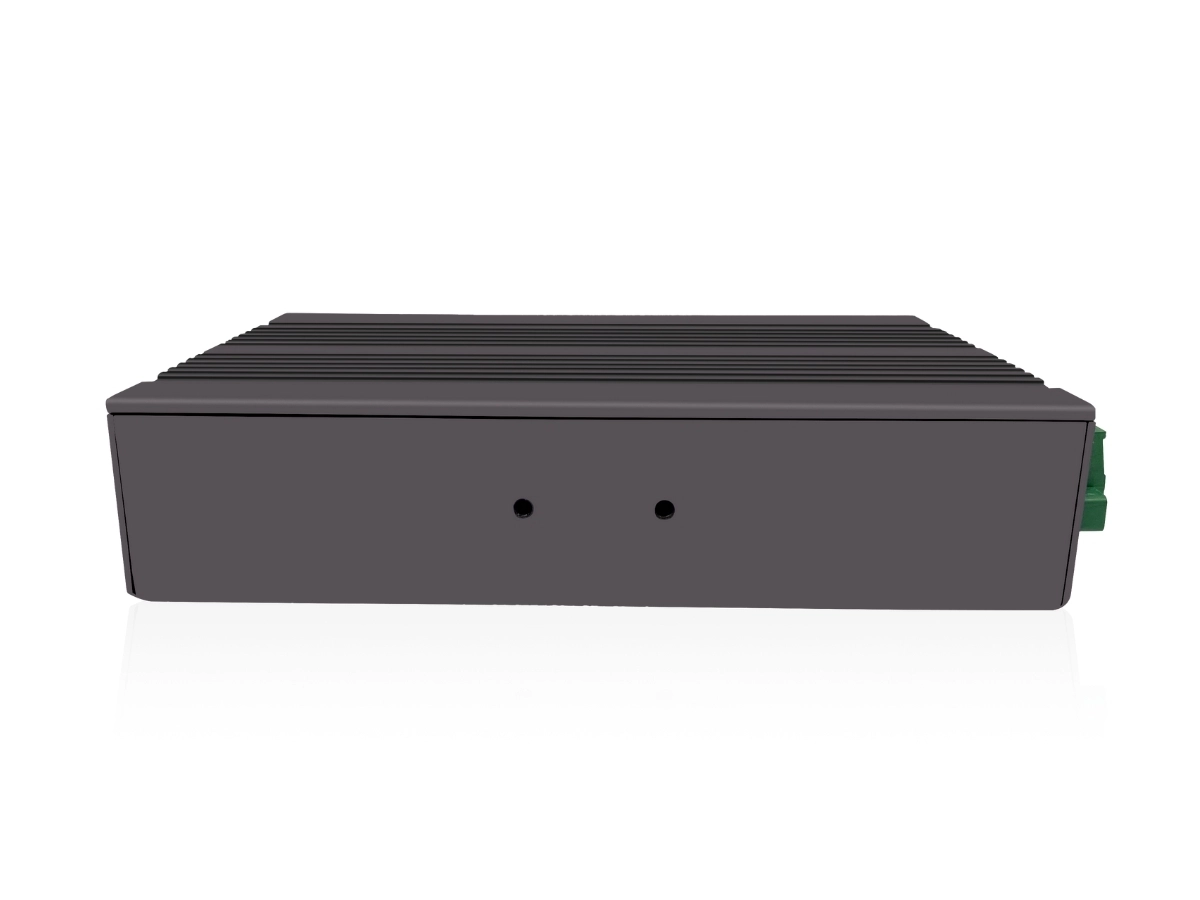

AE-IGM210CS

1 Port 1 Power Gigabit Industrial Ethernet Switch

DATASHEET

Unlock industrial-grade resilience with the AE-IGM210CS Gigabit Industrial Ethernet Switch from AE Connect. Engineered for harsh environments, this rugged switch delivers uncompromising performance with dual fiber-copper connectivity, ensuring seamless data transfer in mission-critical operations across factories, power utilities, and transportation networks.

Deploy with confidence in extreme conditions from frozen tundras (–40°C) to scorching plant floors (+75°C) – where IP40-rated protection shields against dust, vibrations, and electromagnetic interference. As India’s premier industrial networking solution, it guarantees zero packet loss for SCADA systems, IIoT edge devices, and Industry 4.0 automation while slashing operational costs through energy-efficient (<6W) operation and 100,000+ hour service life.

Versatile Connectivity: 1×10/100/1000Mbps auto-negotiation RJ45 port + 1×1000BASE-X SC fiber interface.
Industrial Toughness: Fanless design, IP40 metal casing, and DIN rail mounting (–40°C to +75°C operating range).
Ultimate Reliability: Dual power input (DC 12–24V), 6KV lightning protection on ports/power, and 100,000+ hours MTBF.
Intelligent Control: Supports IEEE 802.3x flow control, auto MDI/MDIX, and wire-speed forwarding.
EMC Certified: Compliant with IEC61000-4-2/3/4/5/6/8 (ESD, surge, vibration) for industrial stability.

Get Quote

Specification
Documentation

Specification

Category	Details
Ports	1× RJ45 (10/100/1000BASE-T), 1× SC (1000BASE-X fiber)
Optics	TX Power: -15~-5dBm RX Sensitivity: -32dBm Distance: Up to 20km (fiber)
Performance	Backplane: 4Gbps Forwarding Rate: 2.98Mpps MAC Table: 8K
Power	Input: DC 12–24V (dual redundant) Consumption: <6W Reverse-polarity protection
Environmental	Operating Temp: –40°C to +75°C (–40°F to 167°F) Storage Temp: –40°C to +85°C Humidity: 5%–95% non-condensing
Mechanical	Dimensions: 135×92×30mm Weight: 0.85kg Protection: IP40 metal housing DIN rail mount
Compliance	IEEE 802.3i/u/ab/z, IEC61000-4-2/3/4/5/6/8, RoHS
Warranty	3 years (extendable)
